eldoLED by Acuity

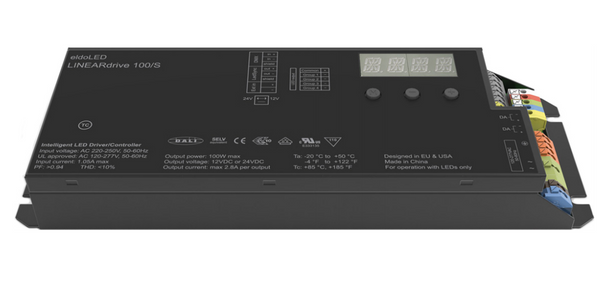

100/S eldoLED LINEARdrive (LIN100S1) Programmable Constant Voltage LED Driver - 100W 12/24V DMX/DALI

(No reviews yet) Write a Review
SKU:
BS46-LIN100S1
MPN:
LIN100S1
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save
  • 100/S eldoLED LINEARdrive Programmable Constant Voltage LED Driver - 100W 12/24V DMX/DALI
  • 100/S eldoLED LINEARdrive - Output Specifications
  • 100/S eldoLED LINEARdrive - Control
  • 100/S eldoLED LINEARdrive - Install, Program, Wiring
  • 100/S eldoLED LINEARdrive - Wiring
  • 100/S eldoLED LINEARdrive - Dimensions
MSRP: $200.00
Now: $165.95
Was: $200.00
— You save $34.05

Description


eldoLED LINEARdrive 100/S Programmable Constant Voltage LED Driver, 100W Max Power Output, Universal 120-277V Input, Low Voltage Dip Switch Select 12Vdc or 24Vdc Output Voltage, Output Current 2800mA Max per Channel, 4 separately controllable LED outputs configured via the user interface on the driver, DMX/DALI compatible, Full-color (RGBW) Dimming 0.1%-100%, Square Metal Case

eldoLED LINEARdrive 100/S 4-channel Full-Color DMX/DALI LED Driver

LINEARdrive AC, 100W, DMX/DALI, User Interface (UI), 4 control channels, constant voltage, 4 x 12/24V outputs, square metal case

Model Program CI Code
LIN100S1 *222Y54

View AllClose

Additional Information

Our Part No.:
BS46-LIN100S1
Manufacturer Part No.:
LIN100S1
Manufacturer Material Code:
*222Y54
Brand:
Acuity eldoLED LINEARdrive
Fixture Type:
LED
Driver Type:
Constant-Voltage-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
100W
Max Output Current:
2800mA
Max Output Voltage:
12V, 24V
Dimming:
Dimmable
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
9.06" L x 3.15" W x 1.18" H
UL Class:
Class 2
Features:
Programming via User Interface on driver, DMX/DALI
Alternative Keywords:
702-00044-001
Warranty:
Manufacturer's
Case Size:
20
