Description

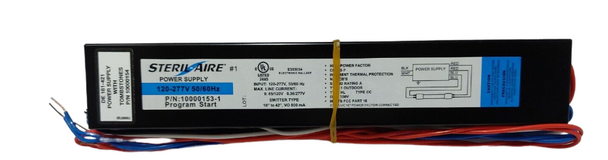

STERIL-AIRE 10000153-1 Power Supply, ships with new socket connectors, 110-277V, runs 16" to 42" UV Emitter Bulbs
Sterli-aire 800mA Power Supply
Emitters may be installed anywhere to bathe an air stream or surfaces with germicidal UVC energy. Steril-aire DE Series UVC fixtures.
Replaces Discontinued Steril-aire U1-1/110UVW, 10000127, 10000153,10000160
- 10000154 = 10000153-1 + new sockets
- Emitter Type 16" - 42" VO 800ma
- Input Voltage: 120-277 VAC
- High Power Factor
- Class P
- Inherent Thermal Protection
- Sound Rating A
- Type 1 Outdoor
- OVC: 300V
- Lamp End of Life Protection
- 10000154 (DE 181 thru 421 with tombstones) is the same unit and includes socket connects
- UL Listing E303034
- DE 181 to 421 Power Supply
Operates the following Steril-aire UV Emitter Bulbs:
- 20000100 GTD 16 VO 16.1" 50 W (DE 181)
- 20000200 GTD 22 VO 22.4" 72 W (DE 241)
- 20000300 GTD 28 VO 28.4" 84 W (DE 301)
- 20000400 GTD 34 VO 34.4" 98 W (DE 361)
- 20000500 GTD 40 VO 40.4" 109 W (DE421)
Additional Information
Our Part No: |
BSF-10000154 |
Weight: |
1.5000 |
Mfr Part #: |
10000153-1 |
Input Voltage: |
120/277 |
Warranty: |
60 month TRC |
Lamp: |
Use with 16" to 42" UVC Lamps |
Dimensions: |
7.5" L x 2.0" W x 1.2" H |
Product Data Sheet: |
No |
Features: |
Minimum Starting Temp: -20ºC |
Fixture Type: |
UV Germicidal |
Case Size: |
10 |
Alternative Keywords: |
Replaces Surelite 10-0520, U1-1/110UV |
