Description
DUALdrive 1065/M Constant Current 2-Channel LED Driver, 100W Max Power Output, Programmable Fixed 150-1400mA Output Current per Channel, two 2-55V voltage output, analog 0-10V dimming down to dark 0.1%

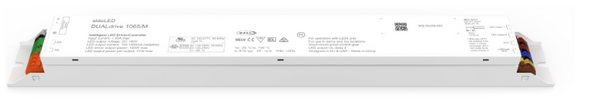

eldoLED DUALdrive 1065/M Constant Current LED Driver
DUALdrive (DL1065M2), 100W, DALI-2 + AUX, 2 control channels, constant current, 2 x 55V outputs, long metal, side feed
Features
- Max Power Output 100W
- 2-Channel Programmable Output Current 150-1400mA
- Programmable Dimming Curve LOG Logarithmic (default), LIN Linear
- Programmable Dimming Range 100%-0.1% (default)
- Auxiliary Output: 15.5-25V DC, 18mA max
- Control Protocol: DALI-2 Device Type 6, LEDcode2
- NTC interface for robust thermal management
- Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
If you do not enter the program code above before Add to Cart , we will contact after ordering to get the six digit alpha-numeric following the * located on a sticker on the driver so we can program it to this required spec. We are not able to ship with out the program code.
For example 600MA LIN is what we will need to program your driver prior to shipping.
Common eldoLED DUALdrive 1065/M Program Codes
Spec Sheets
Additional Information
Our Part No.: |
BS46-DL1065M |
Manufacturer Part No.: |
DL1065M2 |
Brand: |
Acuity eldoLED DUALdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
100W |
Max Output Current: |
1400mA |
Max Output Voltage: |
55V |
Dimming: |
DALI-2 Device Type 6, LEDcode |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
14.57" L x 1.62" W x 1.18" H |
UL Class: |
Class 2, Type TL |
Features: |
2-channel, Dims to Dark, Long-case, Terminal Connections |
Warranty: |
Manufacturer's |
Case Size: |
10 |
