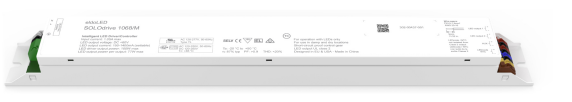

1066/L SOLOdrive (SL1066M1) eldoLED Programmable Constant Current LED Driver - 100W 0-10V Dimming

(No reviews yet) Write a Review
SKU:
BS46-SL1066M
MPN:
SL1066M1
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off
  • 1066/L SOLOdrive (SL1066M1) eldoLED Programmable Constant Current LED Driver - 100W 0-10V Dimming
  • 1066/L SOLOdrive (SL1066M1) eldoLED - Output Specifications
  • 1066/L SOLOdrive (SL1066M1) eldoLED - Control
  • 1066/L SOLOdrive (SL1066M1) eldoLED - Dimming Curve
  • 1066/L SOLOdrive (SL1066M1) eldoLED - Terminal Connections
  • 1066/L SOLOdrive (SL1066M1) eldoLED - Dimensions
  • eldoLED Form Factor Overview
  • 1066/L SOLOdrive (SL1066M1) eldoLED - Program Code
MSRP: $115.00
Now: $99.95
Was: $115.00
— You save $15.05

Description


SOLOdrive 1066/M Programmable Constant Current LED Driver, 100W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, 2 x 1-55V Output, Analog 0-10V Dimming 0.1%-100% Dim-to-Dark, Auxiliary Port

eldoLED SOLOdrive 1066/M 100W LED Driver

SOLOdrive, 100W, 0-10V, 1 control channel, constant current, 2x 55V output, side feed, long metal

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic, SNL soft linear, SQU square
  • Minimum Dimming Level: 0.1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.


Common Custom Program Codes
Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
SL1066M1 1000MA LIN *290TML 198934013743   SL1066M1 607MA LIN *276635 196182358357
SL1066M1 1000MA LOG *2905R3 197590864959   SL1066M1 607MA LIN 1.0MIN *28260H 196183788917
SL1066M1 1025MA LOG *2667JS 193048963298   SL1066M1 700MA LIN *278F2G 196182896095
SL1066M1 1025MA LOG 10.0MIN *2667JR 193048963281   SL1066M1 700MA LOG *2656CH 193048824759
SL1066M1 1050MA LOG *2676RS 194994227175   SL1066M1 750MA LIN 1.0MIN *2677J5 194994233220
SL1066M1 1050MA LOG 10.0MIN *2676RR 194994227168   SL1066M1 800MA LOG *2667HU 193048962994
SL1066M1 1070MA LIN 1.0MIN *276REH 196182489396   SL1066M1 800MA LOG 10.0MIN *2667HS 193048963007
SL1066M1 1075MA LIN 1.0MIN *2677J3 194994233183   SL1066M1 825MA LOG *2667HP 193048962963
SL1066M1 1075MA LOG *2667JP 193048963274   SL1066M1 825MA LOG 10.0MIN *2667HM 193048962970
SL1066M1 1075MA LOG 10.0MIN *2667JL 193048963250   SL1066M1 850MA LOG *2667HJ 193048962932
SL1066M1 1100MA LOG *2667JJ 193048963243   SL1066M1 850MA LOG 10.0MIN *2667HG 193048962895
SL1066M1 1100MA LOG 10.0MIN *2667JC 193048963144   SL1066M1 875MA LOG *2667GN 193048962666
SL1066M1 1300MA LOG *2848GY 197589436051   SL1066M1 875MA LOG 10.0MIN *2667GM 193048962659
SL1066M1 1375MA LOG *2667J7 193048963182   SL1066M1 MCUR LOG CH1-1200MA CH2-1050MA *2675UF 194994219224
SL1066M1 1375MA LOG 10.0MIN *2667J5 193048963076   SL1066M1 MCUR LOG CH1-1200MA CH2-1050MA 10.0MIN *2675U6 194994219217
SL1066M1 320MA LOG *2695GL 194994707738   SL1066M1 MCUR LOG CH1-1200MA CH2-825MA *2675UH 194994219248
SL1066M1 350MA LOG *252CGP 193047025256   SL1066M1 MCUR LOG CH1-900MA CH2-1050MA *2675UR 194994219309
SL1066M1 475MA LOG 1.0MIN *26444G 193048707694   SL1066M1 MCUR LOG CH1-900MA CH2-1050MA 10.0MIN *2675UT 194994219286
SL1066M1 575MA LIN 10.0MIN *293FXN 198935423077   SL1066M1 MCUR LOG CH1-900MA CH2-825MA *2675UW 194994219378
SL1066M1 575MA LOG 10.0MIN *280HHU 196183394910   SL1066M1 MCUR LOG CH1-900MA CH2-825MA 10.0MIN *2675UX 194994219385
SL1066M1 580MA LOG 10.0MIN *2695GT 194994707783
SL1066M1 600MA LOG *2667J0 193048963113
SL1066M1 600MA LOG 10.0MIN *2667HW 193048963038
View AllClose

Additional Information

Our Part No.:
BS46-SL1066M1
Manufacturer Part No.:
SL1066M1
Brand:
Acuity eldoLED SOLOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
100W
Max Output Current:
1400mA
Output Current Programmable Range:
150-1400mA
Max Output Voltage:
55V
Dimming:
Analog (0-10V)
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
14.57" L x 1.62" W x 1.18" H
UL Class:
Class 2
Features:
Side Feed, Auxiliary
Alternative Keywords:
SL1066M
Warranty:
Manufacturer's
Case Size:
10
