Description
ECOdrive 1066/M Constant Current LED Driver, 100W Max Output Power, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, Single 2-55V Output, Analog 0-10V Dimming 1%-100%, Auxiliary Port

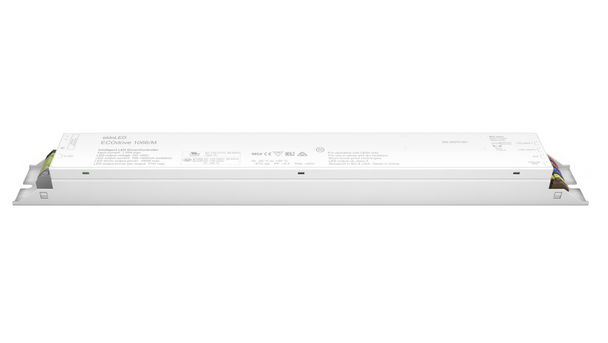

eldoLED ECOdrive 1066/M 100W LED Driver
ECOdrive, 100W, 0-10V + AUX, 1 control channel, constant current, 1x 55V output, side feed, long metal
Programming Options:
- Output Current: 150-1400mA (1000mA factory default) in 1mA increments
- Dimming Curve: LIN linear (factory default), LOG logarithmic, SLN soft linear, SQU square
- Minimum Dimming Level: 1% (factory default) in 0.1% increments
If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.
For example 600MA LIN is what we will need to program your driver prior to shipping.
Spec Sheets
Additional Information
Our Part No.: |
BS46-EC1066M2 |
Manufacturer Part No.: |
EC1066M2 |
Brand: |
Acuity eldoLED ECOdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
100W |
Max Output Current: |
1400mA |
Output Current Programmable Range: |
150-1400mA |
Max Output Voltage: |
55V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
14.57" (L) x 1.62" (W) x 1.18" (H) |
UL Class: |
Class 2 |
Features: |
Side Feed, Auxiliary |
Alternative Keywords: |
EC1066M1, EC1066M |
Warranty: |
Manufacturer's |
Case Size: |
10 |
