Description
eldoLED LINEARdrive 200D-D2Z2C DC-powered Programmable Constant Voltage LED Driver, 224W Max Power Output, 12/24VDC Input, Low Voltage 12-28Vdc Output, Output Current 8000mA Max, 2 LED outputs with 2 control channels, DALI DT8 control protocol, Dimming 0.1-100%, Long Plastic Case

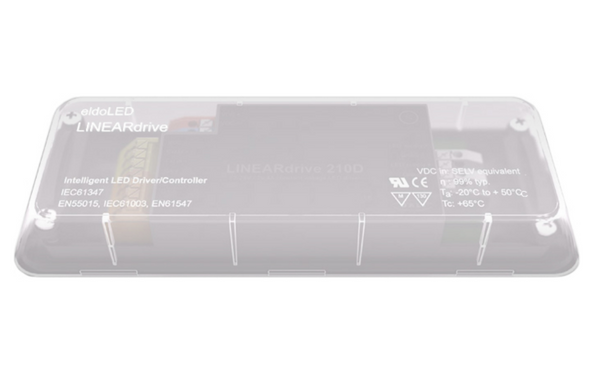

eldoLED LINEARdrive 200D-D2Z2C 200W 2-channel DALI LED Driver
LINEARdrive DC, 200W, 8A, DALI DT8, 12-28VDC Input, 2 control channel, 2 constant voltage outputs, plastic long case
The LINEARdrive DC series by eldoLED is a low-voltage constant voltage LED driver to control shade of white or show sequence without an external controller.
Spec SheetsAdditional Information
Our Part No.: |
BS46-LN200D-D2Z2C2 |
Manufacturer Part No.: |
LN200D-D2Z2C2 |
Manufacterer Material Code: |
NA |
Brand: |
Acuity eldoLED LINEARdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage-Programmable |
Input Voltage: |
12-28VDC |
Max Output Power: |
200W, 224W |
Max Output Current: |
8000mA |
Max Output Voltage: |
28V |
Dimming: |
Dimmable |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
6.02" L x 1.97" W x 0.91" H |
UL Class: |
Class 2 |
Features: |
Load 8A max, irrespective of whether using one or both LED outputs, DALI DT8 |
Warranty: |
Manufacturer's |
Case Size: |
12 |
