Description
eldoLED LINEARdrive 212/D DC-powered Programmable Constant Voltage LED Driver, 200W Max Power Output, 12/24/28VDC Input, Low Voltage 12-28Vdc Output, Output Current 8000mA Max, two LED outputs with single control channel, DMX/RDM control protocol, Dimming 0.1-100% Range, Auxiliary Power, Long Plastic Case

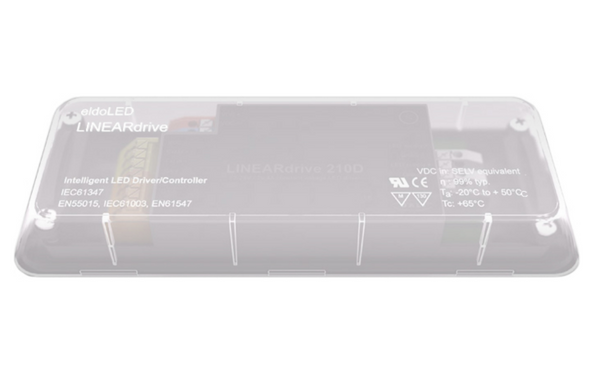

eldoLED LINEARdrive 212/D 200W 1-channel Full-Color DMX/RDM LED Driver
LINEARdrive, 200W, DMX/RDM , 12-28VDC Input, 1 control channel, 2 constant voltage outputs, plastic long case
The LINEARdrive DC series by eldoLED is a low-voltage constant voltage LED driver to control shade of white or show sequence without an external controller.
Spec SheetsAdditional Information
Our Part No.: |
BS46-LIN212D1 |
Manufacturer Part No.: |
LIN212D1 |
Manufacturer Material Code: |
*226MU4 |
Brand: |
Acuity eldoLED LINEARdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage-Programmable |
Input Voltage: |
12-28VDC |
Max Output Power: |
200W |
Max Output Current: |
8000mA |
Max Output Voltage: |
28V |
Dimming: |
Dimmable |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
6.02" L x 1.97" W x 0.91" H |
UL Class: |
Class 2 |
Features: |
8A maximum, irrespective of whether using one or both LED outputs |
Warranty: |
Manufacturer's |
Case Size: |
12 |
