Description
eldoLED LINEARdrive 220/D DC-powered Programmable Constant Voltage LED Driver, 200W Max Power Output, 12/24/28VDC Input, Low Voltage 12-28Vdc Output, Output Current 8000mA Max, 2 LED outputs with 2 control channels, DALI version-1 Device Type 6 control protocol, Dimming 0.1-100% Range, Auxiliary Power, Long Plastic Case

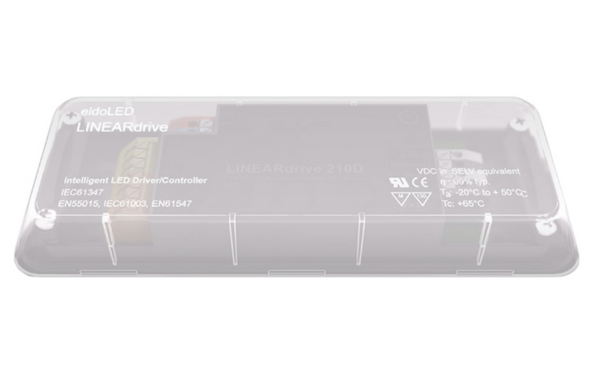

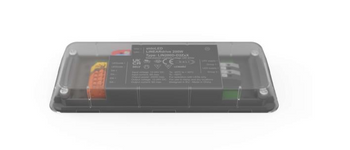

eldoLED LINEARdrive 220/D 200W 2-channel DALI LED Driver
LINEARdrive, 200W, DALI , 12-28VDC Input, 2 control channel, 2 constant voltage outputs, plastic long case
The LINEARdrive DC series by eldoLED is a low-voltage constant voltage LED driver to control shade of white or show sequence without an external controller.
Spec SheetsAdditional Information
Our Part No.: |
BS46-LIN220D1 |
Manufacturer Part No.: |
LIN220D1 |
Manufacturer Material Code: |
*226MTY |
Brand: |
Acuity eldoLED LINEARdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage-Programmable |
Input Voltage: |
12-28V |
Max Output Power: |
200W |
Max Output Current: |
8000mA |
Max Output Voltage: |
28V |
Dimming: |
Dimmable |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
6.02" L x 1.97" W x 0.91" H |
UL Class: |
Class 2 |
Features: |
8A maximum, irrespective of whether using one or both LED outputs, DALI |
Warranty: |
Manufacturer's |
Case Size: |
12 |
