Description
WAGO 221 Series Lever-Nuts, 3-wire, 600VAC 20A, Use with 24-12 AWG Solid/Stranded/Fine-stranded Conductor Lead Wires, Transparent Housing, Easy Lever System

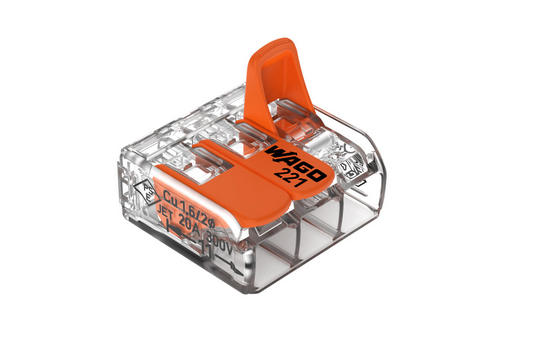

WAGO 221 Series Lever-Nuts - 3-wire
The WAGO 221 Series Lever-Nuts® splicing connector has a compact, user-friendly design for up to 24 AWG conductors. It offers quick, reliable connections for solid, stranded, and flexible wires, with a transparent housing for easy inspection and a low-effort lever operation.
- Rated 600V 20A for 24-12 AWG conductors
- Lever Operated
- Transparent housing with 3 polycarbonate orange levers
- Two test slots
Spec SheetsVideos
View AllClose
Additional Information
Our Part No: |
BSF-WAG-221-413 |
Mfr Part #: |
221-413 |
Brand: |
WAGO |
Rated Voltage: |
600 VAC |
Nominal Current Rating: |
20A |
Conductor Size: |
12 - 24 AWG |
Conductor Type: |
Solid, Stranded, Flex |
Number of Conductors: |
3 |
Dimensions: |
0.73" L x 0.74" W x 0.33" H |
Product Data Sheet: |
See PDF Link Provided |
Features: |
Ease of use – pull the lever up, insert a conductor and push the lever back down |
Approvals: |
UL 486C |
Case Size: |
25 |
