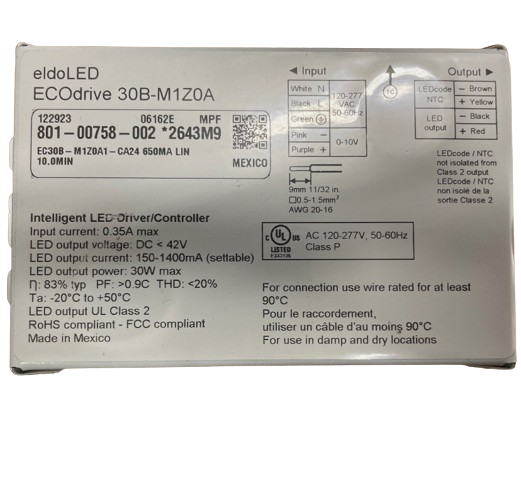

30B-M1Z0A ECOdrive (EC30B-M1Z0A1) eldoLED Programmable Constant Current LED Driver - 30W 0-10V Dimming 42V Max Output

(No reviews yet) Write a Review
SKU:
BS46-EC30B-M1Z0A
MPN:
EC30B-M1Z0A1
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 3% off
  • 30B-M1Z0A ECOdrive (EC30B-M1Z0A1) eldoLED Programmable Constant Current LED Driver - 30W 0-10V Dimming 42V Max Output
  • 30B-M1Z0A ECOdrive (EC30B-M1Z0A1) eldoLED - Output Specifications
  • 30B-M1Z0A ECOdrive (EC30B-M1Z0A1) eldoLED - Control
  • 30B-M1Z0A ECOdrive (EC30B-M1Z0A1) eldoLED - Wiring
  • 30B-M1Z0A ECOdrive (EC30B-M1Z0A1) eldoLED - Dimensions
  • General eldoLED ECOdrive Program Code Info
  • 30B-M1Z0A ECOdrive (EC30B-M1Z0A1) eldoLED - Program Code Info
  • 30B-M1Z0A ECOdrive (EC30B-M1Z0A1) eldoLED - Program Code Info - CA24
MSRP: $96.00
Now: $79.95
Was: $96.00
— You save $16.05

Description


ECOdrive 30B-M1Z0A Programmable Constant Current LED Driver, 30W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, 1-42V Output, Analog 0-10V Dimming 1%-100%, Bottom Feed with Studs

eldoLED ECOdrive 30B-M1Z0A 30W LED Driver

ECOdrive, 30W, 120-277V, 0-10V, 1 control channel, constant current, 1 x 42V output, bottom feed, metal square

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic, SNL soft linear, SQU square
  • Minimum Dimming Level: 1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.


Common Custom Program Settings

Product Catalog Number CICode UPC   Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
EC30B-M1Z0A1 150MA LIN *2633SR 193048603941   EC30B-M1Z0A1 400MA LIN *2816EN 196183558039   EC30B-M1Z0A1 780MA LIN *2633TL 193048604191
EC30B-M1Z0A1 150MA LOG *259C32 193048225211   EC30B-M1Z0A1 400MA LOG *273RC1 194995801312   EC30B-M1Z0A1 780MA LIN 10.0MIN *2633TV 193048604269
EC30B-M1Z0A1 150MA LOG 10.0MIN *259C34 193048225235   EC30B-M1Z0A1 425MA LIN *2816EU 196183558053   EC30B-M1Z0A1 800MA LIN *264075 193048675887
EC30B-M1Z0A1 165MA LOG *28405V 197589375435   EC30B-M1Z0A1 425MA LIN 10.0MIN *2816EY 196183558138   EC30B-M1Z0A1 800MA LIN 10.0MIN *264070 193048675863
EC30B-M1Z0A1 170MA LIN *2633SS 193048603958   EC30B-M1Z0A1 450MA LIN *263KST 193048659610   EC30B-M1Z0A1 850MA LIN *2633TM 193048604184
EC30B-M1Z0A1 170MA LIN 10.0MIN *2633TP 193048604221   EC30B-M1Z0A1 450MA LIN 10.0MIN *263KWS 193048659672   EC30B-M1Z0A1 850MA LIN 10.0MIN *2633TW 193048604245
EC30B-M1Z0A1 170MA LOG *259HXR 193048237924   EC30B-M1Z0A1 475MA LIN *26365X 193048623314   EC30B-M1Z0A1 1025MA LIN *2948NY 198935652194
EC30B-M1Z0A1 170MA LOG 10.0MIN *259HXN 193048237931   EC30B-M1Z0A1 475MA LIN 10.0MIN *263666 193048623376   EC30B-M1Z0A1 1350MA LIN *288P1C 197590473007
EC30B-M1Z0A1 200MA LIN *2816EK 196183558015   EC30B-M1Z0A1 480MA LIN *2633SV 193048603989   EC30B-M1Z0A1 1400MA LOG *273R3V 194995799466
EC30B-M1Z0A1 220MA LIN *2852RL 197589629569   EC30B-M1Z0A1 480MA LIN 10.0MIN *2633TT 193048604276   EC30B-M1Z0A1-CA24 500MA LIN *261454 193048404999
EC30B-M1Z0A1 220MA LOG *284PUW 197589543605   EC30B-M1Z0A1 480MA LOG *259J02 193048238280   EC30B-M1Z0A1-CA24 700MA LOG *273YKY 194995858224
EC30B-M1Z0A1 230MA LIN *2633ST 193048603965   EC30B-M1Z0A1 480MA LOG 10.0MIN *259HVH 193048237283   EC30B-M1Z0A1-CA24 1050MA LIN *280SF6 196183458766
EC30B-M1Z0A1 230MA LIN 10.0MIN *2633TR 193048604238   EC30B-M1Z0A1 500MA LIN *2774LK 196182586637   EC30B-M1Z0A1-CA24 225MA LIN *278K30 196182928291
EC30B-M1Z0A1 230MA LOG *259HXS 193048237900   EC30B-M1Z0A1 500MA LIN 10.0MIN *2816EE 196183557971   EC30B-M1Z0A1-CA24 300MA LIN 10.0MIN *274CGH 194995937219
EC30B-M1Z0A1 230MA LOG 10.0MIN *259HV9 193048237252   EC30B-M1Z0A1 515MA LIN *263ESL 193048656664   EC30B-M1Z0A1-CA24 350MA LIN *261451 193048404975
EC30B-M1Z0A1 240MA LOG *28406C 197589375442   EC30B-M1Z0A1 515MA LIN 10.0MIN *263ETS 193048656794   EC30B-M1Z0A1-CA24 350MA LOG *276MX4 196182468681
EC30B-M1Z0A1 250MA LIN *263KSU 193048659603   EC30B-M1Z0A1 525MA LIN *2816ET 196183558107   EC30B-M1Z0A1-CA24 385MA LIN *274CHN 194995937554
EC30B-M1Z0A1 250MA LIN 10.0MIN *263ESS 193048656701   EC30B-M1Z0A1 530MA LIN *263KSW 193048659634   EC30B-M1Z0A1-CA24 385MA LIN 10.0MIN *274CHM 194995937516
EC30B-M1Z0A1 250MA LOG *280HWN 196183398031   EC30B-M1Z0A1 530MA LIN 10.0MIN *263ESU 193048656718   EC30B-M1Z0A1-CA24 460MA LIN *274CHE 194995937455
EC30B-M1Z0A1 260MA LIN *263ESF 193048656596   EC30B-M1Z0A1 570MA LIN *26365Y 193048623352   EC30B-M1Z0A1-CA24 460MA LIN 10.0MIN *274CH8 194995937424
EC30B-M1Z0A1 260MA LIN 10.0MIN *263ESW 193048656732   EC30B-M1Z0A1 570MA LIN 10.0MIN *263667 193048623406   EC30B-M1Z0A1-CA24 500MA LOG *2673GS 194994199427
EC30B-M1Z0A1 285MA LIN *276A43 196182389368   EC30B-M1Z0A1 580MA LIN *263KSR 193048659573   EC30B-M1Z0A1-CA24 550MA LIN *27511Y 196182088223
EC30B-M1Z0A1 290MA LOG *259HXT 193048237948   EC30B-M1Z0A1 580MA LIN 10.0MIN *263KTS 193048659689   EC30B-M1Z0A1-CA24 590MA LIN *274CHP 194995937561
EC30B-M1Z0A1 290MA LOG 10.0MIN *259HVA 193048237269   EC30B-M1Z0A1 610MA LIN *2633TK 193048604207   EC30B-M1Z0A1-CA24 590MA LIN 10.0MIN *274CHS 194995937578
EC30B-M1Z0A1 300MA LIN *2816EJ 196183558022   EC30B-M1Z0A1 610MA LIN 10.0MIN *2633TU 193048604252   EC30B-M1Z0A1-CA24 625MA LIN *275122 196182088230
EC30B-M1Z0A1 300MA LIN 10.0MIN *269JXY 194994801245   EC30B-M1Z0A1 625MA LIN *2816EX 196183558114   EC30B-M1Z0A1-CA24 630MA LIN *274CHL 194995937493
EC30B-M1Z0A1 310MA LIN 10.0MIN *270XWL 194995140275   EC30B-M1Z0A1 625MA LOG *2816CM 196183557780   EC30B-M1Z0A1-CA24 630MA LIN 10.0MIN *274CHH 194995937523
EC30B-M1Z0A1 315MA LIN *2948P0 198935652200   EC30B-M1Z0A1 650MA LIN *264071 193048675870   EC30B-M1Z0A1-CA24 650MA LIN *2643M6 193048703610
EC30B-M1Z0A1 325MA LIN *2816EV 196183558060   EC30B-M1Z0A1 650MA LIN 10.0MIN *26406X 193048675856   EC30B-M1Z0A1-CA24 650MA LIN 10.0MIN *2643M9 193048703641
EC30B-M1Z0A1 325MA LIN 10.0MIN *2816F0 196183558121   EC30B-M1Z0A1 660MA LIN *263ESR 193048656688   EC30B-M1Z0A1-CA24 700MA LIN *278N6G 196182953675
EC30B-M1Z0A1 325MA LOG *28406H 197589375381   EC30B-M1Z0A1 660MA LIN 10.0MIN *263EVS 193048656787   EC30B-M1Z0A1-CA24 800MA LIN *2643M7 193048703627
EC30B-M1Z0A1 340MA LIN *2640T5 193048680690   EC30B-M1Z0A1 670MA LIN *263KSX 193048659641   EC30B-M1Z0A1-CA24 800MA LIN 10.0MIN *2643MA 193048703658
EC30B-M1Z0A1 340MA LIN 10.0MIN *2640T3 193048680720   EC30B-M1Z0A1 670MA LIN 10.0MIN *263ESV 193048656725   EC30B-M1Z0A1-ES16 450MA LIN *2815VX 196183554772
EC30B-M1Z0A1 350MA LIN *26365V 193048623321   EC30B-M1Z0A1 690MA LIN *263664 193048623369   EC30B-M1Z0A1-VLC-CA24 650MA LIN *2855S0 197589651973
EC30B-M1Z0A1 350MA LIN 10.0MIN *263665 193048623345   EC30B-M1Z0A1 690MA LIN 10.0MIN *26366F 193048623437
EC30B-M1Z0A1 350MA LOG *2508FN 191848305492   EC30B-M1Z0A1 700MA LIN *2774LL 196182586644
EC30B-M1Z0A1 360MA LIN *2633SU 193048603972   EC30B-M1Z0A1 710MA LIN *263KSS 193048659566
EC30B-M1Z0A1 360MA LIN 10.0MIN *2633TS 193048604283   EC30B-M1Z0A1 710MA LIN 10.0MIN *263KUS 193048659658
EC30B-M1Z0A1 360MA LOG *259J01 193048238266   EC30B-M1Z0A1 720MA LOG *256M35 193047899550
EC30B-M1Z0A1 360MA LOG 10.0MIN *259HVE 193048237238   EC30B-M1Z0A1 780MA LIN *2633TL 193048604191
EC30B-M1Z0A1 375MA LIN *263ESK 193048656657   EC30B-M1Z0A1 780MA LIN 10.0MIN *2633TV 193048604269
EC30B-M1Z0A1 375MA LIN 10.0MIN *263ESX 193048656770   EC30B-M1Z0A1 780MA LIN *2633TL 193048604191
EC30B-M1Z0A1 390MA LIN *263KSV 193048659627   EC30B-M1Z0A1 780MA LIN 10.0MIN *2633TV 193048604269
EC30B-M1Z0A1 390MA LIN 10.0MIN *263EST 193048656749
View AllClose

Additional Information

Our Part No.:
BS46-EC30B-M1Z0A
Manufacturer Part No.:
EC30B-M1Z0A1
Brand:
Acuity eldoLED ECOdrive
Fixture Type:
LED
Driver Type:
Constant-Current
Input Voltage:
120-277V (Universal)
Max Output Power:
30W
Max Output Current:
1400mA
Output Current Programmable Range:
150-1400mA
Max Output Voltage:
42V
Dimming:
Analog (0-10V), LEDcode
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
5.12" L x 2.85" W x 1.49" H
UL Class:
Class 2
Features:
Bottom Feed, Square shape
Warranty:
Manufacturer's
Case Size:
10
