30B-M2Z0C eldoLED DUALdrive Programmable Constant Current LED Driver - 30W 2-Channel

(No reviews yet) Write a Review
SKU:
BS46-DL30B-M2Z0C1
MPN:
DL30B-M2Z0C1
Availability:
In Stock - Unless otherwise indicated by quantity below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off

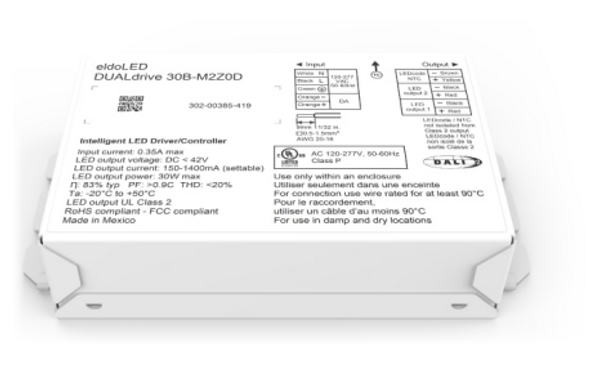

  • 30B-M2Z0C eldoLED DUALdrive Programmable Constant Current LED Driver - 30W 2-Channel
  • 30B-M2Z0C eldoLED DUALdrive - Specifications
  • 30B-M2Z0C eldoLED DUALdrive - STANDARD or LIGHTSHAPE Programming Options
  • 30B-M2Z0C eldoLED DUALdrive - STANDARD Programming
  • 30B-M2Z0C eldoLED DUALdrive - Wiring
  • 30B-M2Z0C eldoLED DUALdrive - Dimensions
  • 30B-M2Z0C eldoLED DUALdrive - Dimming Curve Options
MSRP: $78.00
Now: $64.95
Was: $78.00
— You save $13.05

Description


DUALdrive 30B-M2Z0C Constant Current 2-Channel LED Driver, 30W Max Power Output, Programmable Fixed Output Current 150-1400mA, 15-42V Output Voltage, DALI-2 Dim to Dark 0.1%, Bottom Feed with Stud Mount

eldoLED DUALdrive 30B-M2Z0C Constant Current 2-Channel Constant Current LED Driver

DUALdrive, 30W, DALI-2 Device Type 8, 2 control channels, constant current, 2 x 42V output, square metal, bottom feed

Programming Options:

  • STANDARD
    • Output Current: 150-1400mA in 1mA increments. LED outputs 1 and 2
    • Dimming Curve: LIN linear, LOG logarithmic (factory default)
    • Minimum Dimming Level: 0.1% (factory default) in 0.1% increments
  • LIGHTSHAPE
    • See Specification Sheet (PDF) Provided

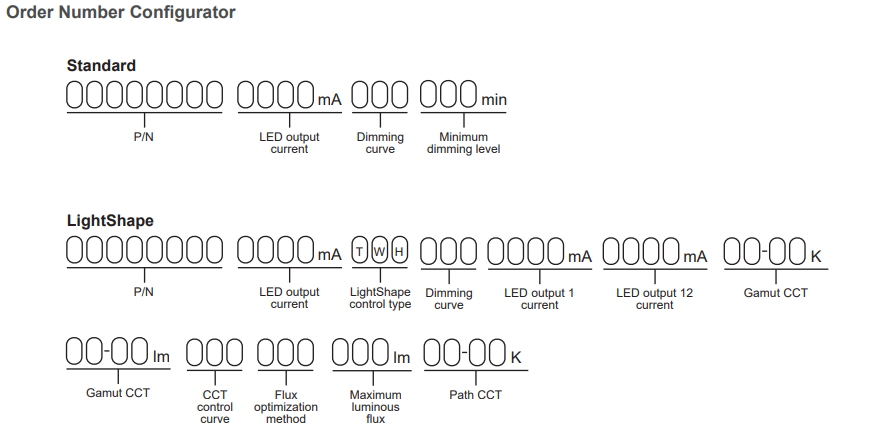

Custom DL30B-M2Z0C Custom Program Settings:

DUALdrive Catalog Number UPC CICode
DL30B-M2Z0C1 270MA TWH LOG 27-50K 8-8LM MAX 196183642660 *281K8J
DL30B-M2Z0C1 350MA TWH LOG 22-60K 10-10LM 196182704475 *277LTX
DL30B-M2Z0C1 350MA TWH LOG 27-65K 10-10LM 194995436897 *2725X7
DL30B-M2Z0C1 350MA TWH LOG 30-50K 10-10LM 196182364631 *2766W1
DL30B-M2Z0C1 430MA TWH LOG 27-50K 12-12LM MAX 196183642639 *281K8K
DL30B-M2Z0C1 500MA TWH LOG 22-60K 10-10LM 196182687976 *277KCY
DL30B-M2Z0C1 500MA TWH LOG 27-50K 15-15LM 196183642677 *281K8M
DL30B-M2Z0C1 500MA TWH LOG 27-50K 15-15LM MAX 196183656629 *281M14
DL30B-M2Z0C1 650MA TWH LOG 27-35K 10-10LM MAX 196182320392 *2760XC
DL30B-M2Z0C1 660MA TWH LOG 27-35K 10-10LM MAX 196182320408 *2760XE
DL30B-M2Z0C1 660MA TWH LOG 27-50K 17-17LM MAX 196183642721 *281K8U
DL30B-M2Z0C1 750MA TWH LIN 27-71K 20-20LM MAX 27-40K 1.0MIN 197590812295 *289YWS
DL30B-M2Z0C1 780MA TWH LOG 27-50K 20-20LM MAX 196183642745 *281K8R
View AllClose

Additional Information

Our Part No.:
BS46-DL30B-M2Z0C1
Manufacturer Part No.:
DL30B-M2Z0C1
Brand:
Acuity eldoLED DUALdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
30W
Max Output Current:
1400mA
Max Output Voltage:
42V
Dimming:
DALI-2 Device Type 8, LEDcode
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
5.12" L x 2.85" W x 1.14" H
UL Class:
Class 2
Features:
2-channel input/output, Dims to Dark, Compact Case
Alternative Keywords:
NA
Warranty:
Manufacturer's
Case Size:
10
