361/A ECOdrive (EC0361A6) eldoLED Programmable Constant Current LED Driver - 30W 0-10V Dimming

(No reviews yet) Write a Review
SKU:
BS46-EC0361A5
MPN:
EC0361A6
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 3% off

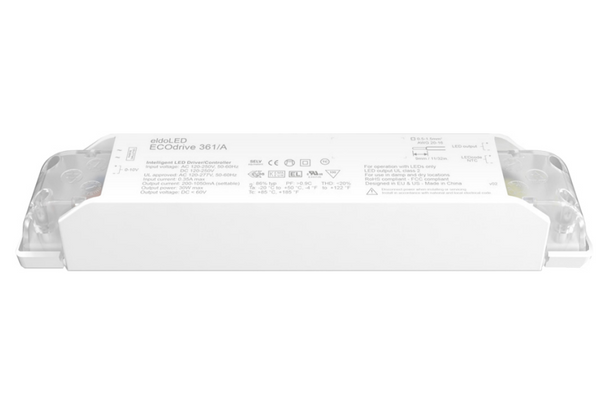

  • 361/A ECOdrive (EC0361A5) eldoLED Programmable Constant Current LED Driver - 30W Analog-dimming
  • 361/A ECOdrive (EC0361A5) eldoLED - Specifications
  • 361/A ECOdrive (EC0361A5) eldoLED - Terminal Connections
  • 361/A ECOdrive (EC0361A5) eldoLED - Dimensions
  • 361/A ECOdrive (EC0361A5) eldoLED - Control
  • eldoLED Form Factor Overview
  • 361/A ECOdrive (EC0361A5) eldoLED - Program Code
MSRP: $77.00
Now: $54.95
Was: $77.00
— You save $22.05

Description


ECOdrive 361/A Programmable Constant Current LED Driver, 30W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, Single 2-55V Output, Analog 0-10V Dimming 1%-100%, Side Feed w/ Plastic Cover Feet Mounting

eldoLED ECOdrive 361/A 30W LED Driver

ECOdrive, 30W, 0-10V, 1 control channel, constant current, 1 x 55V output, side feed, square metal case/plastic lead cover

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic, SNL soft linear, SQU square
  • Minimum Dimming Level: 1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.


Common Custom Program Codes

Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
EC0361A6-CA24 700MA LOG *2728HS 194995456499   EC0361A6 700MA LIN *273XPJ 194995851195
EC0361A6 1050MA LOG *275X5F 196182299216   EC0361A6 700MA LOG *269XWJ 194994900566
EC0361A6 1200MA LOG *2803PW 196183301437   EC0361A6 750MA LOG *271SWT 194995340361
EC0361A6 1400MA LOG *270SLC 194995096367   EC0361A6 800MA LIN *291J6L 198934208187
EC0361A6 150MA LOG *295X1Y 199871093775   EC0361A6-BIS 350MA LOG *2690AX 194994666677
EC0361A6 180MA LOG *281FJ5 196183612847   EC0361A6-CA24 350MA LOG *271JWC 194995283545
EC0361A6 200MA LOG *2905R0 197590864942   EC0361A6-EVA 1050MA LOG *269U4W 194994869177
EC0361A6 250MA LOG *2721LG 194995402519   EC0361A6-EVA 1400MA LOG *269U4X 194994869160
EC0361A6 275MA LOG *27675T 196182366772   EC0361A6-EVA 1400MA LOG 60NTC *287S8W 197590258260
EC0361A6 300MA LOG *276A1R 196182388699   EC0361A6-EVA 350MA LOG *269U4R 194994869115
EC0361A6 350MA LIN *275F9U 196182181115   EC0361A6-EVA 500MA LOG *269U4S 194994869146
EC0361A6 350MA LOG *259SYC 193048259858   EC0361A6-EVA 700MA LOG *269U4V 194994869153
EC0361A6 350MA LOG J50 *288EFE 197590403394   EC0361A6-PSE 1000MA LIN *2732RR 194995648023
EC0361A6 400MA LOG *289JES 197590689439   EC0361A6-PSE 1050MA LOG *2676J3 194994225188
EC0361A6 425MA LIN *27068L 194994955948   EC0361A6-PSE 1400MA LIN *2732RT 194995648054
EC0361A6 475MA LIN *291270 198934082336   EC0361A6-PSE 350MA LOG *266N92 194994088981
EC0361A6 500MA LOG *2710CU 194995151936   EC0361A6-PSE 500MA LIN *2732RS 194995648016
EC0361A6 540MA LOG *281FJA 196183612878   EC0361A6-PSE 500MA LOG *26992H 194994736783
EC0361A6 550MA LIN *270TWK 194995107070   EC0361A6-PSE 600MA LOG *2861E6 197589853179
EC0361A6 550MA LOG *272RMT 194995571697
EC0361A6 600MA LIN *272F3U 194995493487
EC0361A6 600MA LOG *272RUE 194995573028
EC0361A6 620MA LOG *289PR8 197590737796
EC0361A6 625MA LOG *273V8M 194995832101
EC0361A6 650MA LOG *2771GP 196182562365
View AllClose

Additional Information

Our Part No.:
BS46-EC0361A5
Manufacturer Part No.:
EC0361A6
Brand:
Acuity eldoLED ECOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
30W
Max Output Current:
1400mA
Max Output Voltage:
55V
Dimming:
Analog (0-10V), LEDcode
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
8.27" L x 1.59" W x 1.32" H
UL Class:
Class 2
Features:
Rectangular Case, Side Terminal Connector with Plastic Cover
Alternative Keywords:
EC0361A5, EC0361A4, EC0361A3, EC0361A2, EC0361A1
Warranty:
Manufacturer's
Case Size:
10
