eldoLED by Acuity

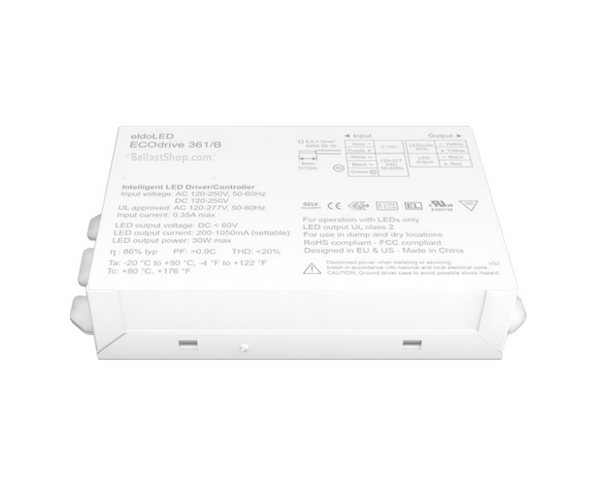

361/B ECOdrive (EC0361B3) eldoLED Programmable Constant Current LED Driver - 30W 0-10V Dimming

(2 reviews) Write a Review
SKU:
BS46-EC0361/B
UPC:
193048530841
MPN:
EC0361B3
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 - 19 and get 5% off
  • Buy 20 or above and get 10% off
  • 361/B ECOdrive (EC0361B3) eldoLED Programmable Constant Current LED Driver - 30W 0-10V Dimming
  • 361/B ECOdrive (EC0361B3) eldoLED - Output Specifications
  • 361/B ECOdrive (EC0361B3) eldoLED - Control
  • 361/B ECOdrive (EC0361B3) eldoLED - Terminal Connections
  • 361/B ECOdrive (EC0361B3) eldoLED - Dimensions
  • eldoLED Form Factor Overview
  • 361/B ECOdrive (EC0361B3) eldoLED - Program Code
MSRP: $120.00
Now: $89.95
Was: $120.00
— You save $30.05

Description


ECOdrive 361/B Programmable Constant Current LED Driver, 30W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, 2-55V Output, Analog 0-10V Dimming 1%-100%, Bottom Exit Stud Mounting

eldoLED ECOdrive 361/B 30W LED Driver

ECOdrive, 30W, 120-277V, 0-10V, 1 control channel, constant current, 1 x 55V output, bottom feed, metal square

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic, SNL soft linear, SQU square
  • Minimum Dimming Level: 1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.


Common Program Codes

Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
EC0361B2 150MA LIN *231TM2 745971115512   EC0361B2 525MA LIN *231Y5K 745971248739
EC0361B2 150MA LIN 10.0MIN *237V49 889804825046   EC0361B2 525MA LOG *234UV7 889804361308
EC0361B2 200MA LIN *231Y5A 745971248616   EC0361B3 530MA LIN *2747TX 194995909216
EC0361B2 200MA LIN 10.0MIN *237V4F 889804825084   EC0361B3 550MA LOG *2621JM 193048485882
EC0361B3 225MA LIN 10.0MIN *252GWP 193047058285   EC0361B3 570MA LOG *25530S 193047673181
EC0361B3 250MA LIN *2556JT 193047699419   EC0361B3 575MA LOG *281TFP 196183701121
EC0361B3 250MA LIN 10.0MIN *2747T1 194995909001   EC0361B2 550MA LIN 10.0MIN *238J5Y 889804912647
EC0361B3 250MA LOG *25789H 193047975759   EC0361B2 575MA LIN *2858KC 197589670264
EC0361B3 260MA LIN *2747TM 194995909162   EC0361B2 575MA LIN 10.0MIN *237PE0 889804792195
EC0361B3 260MA LIN 10.0MIN *2747T4 194995909025   EC0361B3 600MA LOG *2637HH 193048634105
EC0361B2 300MA LIN *231TM5 745971115567   EC0361B3 625MA LOG *256SS5 193047909457
EC0361B2 300MA LIN 10.0MIN *237V5A 889804825343   EC0361B3 650MA LIN *252U0P 193047164511
EC0361B2 325MA LIN *232R0V 745971852639   EC0361B3 650MA LOG *281TFS 196183701169
EC0361B3 325MA LIN 10.0MIN *273G44 194995736058   EC0361B3 660MA LIN *265N6S 193048860962
EC0361B3 340MA LIN *274L54 194995989461   EC0361B3 670MA LIN *265MS7 193048860634
EC0361B3 350MA LIN *252R3M 193047130394   EC0361B2 675MA LIN *261H7U 191723447316
EC0361B3 350MA LIN 10.0MIN *267GCS 194994287414   EC0361B3 690MA LIN *2747TY 194995909285
EC0361B3 350MA LOG *249VU2 191848048429   EC0361B3 700MA LIN *2531LJ 193047237284
EC0361B3 375MA LIN *265MXS 193048860863   EC0361B3 700MA LOG *25407G 193047440325
EC0361B3 375MA LIN 10.0MIN *2747TA 194995909117   EC0361B2 750MA LOG *229UHM 888791676815
EC0361B3 390MA LIN 10.0MIN *2747TF 194995909070   EC0361B3 775MA LIN *252FUV 193047048804
EC0361B2 400MA LIN 10.0MIN *237V4V 889804825206   EC0361B3 800MA LIN *252U0R 193047164498
EC0361B3 400MA LIN *260WSV 193048369601   EC0361B3 850MA LIN *2583UN 193048060133
EC0361B3 400MA LOG *259FS4 193048233247   EC0361B2 900MA LIN 10.0MIN *237V56 889804825305
EC0361B3 425MA LIN 10.0MIN *25515S 193047659628   EC0361B2 900MA LOG *232X6R 889804068610
EC0361B2 425MA LIN *232A92 745971279474   EC0361B2 950MA LIN *231Y5M 745971248807
EC0361B2 450MA LOG *234J3X 889804292145   EC0361B3 950MA LOG *281G93 196183618887
EC0361B3 475MA LIN *253S51 193047414678   EC0361B2 1050MA LIN *232GNN 745971390612
EC0361B3 475MA LOG *281TFN 196183701107   EC0361B2 1050MA LOG *229UHV 888791676860
EC0361B2 500MA LIN 10.0MIN *228WYF 888791554120   EC0361B3 1000MA LIN *279U6M 196183235664
EC0361B3 500MA LIN *25360Y 193047313759   EC0361B3 1000MA LOG *273JT1 194995757244
EC0361B3 500MA LOG *25407F 193047440301   EC0361B3 1050MA LIN *256LTK 193047897129
EC0361B3 515MA LIN *265MYS 193048860894   EC0361B3 1050MA LOG *2531LV 193047237383
EC0361B3 515MA LIN 10.0MIN *2747TJ 194995909148   EC0361B3 1400MA LOG *2531LX 193047237406

View AllClose

Additional Information

Our Part No.:
BS46-EC0361/B
Manufacturer Part No.:
EC0361B3
Brand:
Acuity eldoLED ECOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
30W
Max Output Current:
1400mA
Output Current Programmable Range:
150-1400mA
Max Output Voltage:
55V
Dimming:
Analog (0-10V)
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
5.12" L x 2.83" W x 1.35" H
UL Class:
Class 2
Features:
Square Metal Case, Bottom Feed, Stud Mount
Alternative Keywords:
EC0361B2, EC0361B1, EC0361B
Warranty:
Manufacturer's
Case Size:
10
