eldoLED by Acuity

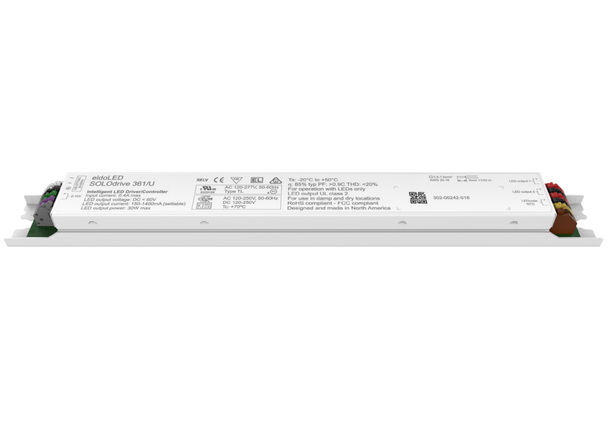

361/U eldoLED SOLOdrive (SL0361U1) Programmable Constant Current LED Driver - 30W Analog-Dim Long-Case

(No reviews yet) Write a Review
SKU:
BS46-SOLO361/U
MPN:
SL0361U1
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off
  • eldoLED SOLOdrive 361/U Programmable Constant Current LED Driver - 30W
  • 361/U eldoLED SOLOdrive (SL0361U1) -Specifications
  • 361/U eldoLED SOLOdrive (SL0361U1) - Control
  • 361/U eldoLED SOLOdrive (SL0361U1) - Dimensions
  • eldoLED Form Factor Overview
MSRP: $90.00
Now: $68.95
Was: $90.00
— You save $21.05

Description


SOLOdrive 361/U Constant Current LED Driver, 30W max output power, universal 120-277V input, programmable fixed current output 150-1400mA and dimming curve, 2 channels 2-55V voltage outputs, analog 0-10V dimming smoothly down to dark 0.1%, long linear case with feet mount and push-in connectors

eldoLED SOLOdrive 30W Programmable LED Driver - Long Case

SOLOdrive AC, 30W, 0-10V, 1 control channel, constant current, 2 x 55V output, side feed, long metal

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic, SNL soft linear, SQU square
  • Minimum Dimming Level: 0.1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.


Common Custom Program Codes

SOLOdrive Model CI Code UPC Code   SOLOdrive Model CI Code UPC Code   SOLOdrive Model CI Code UPC Code
SL0361U1 150MA LIN *2562X0 193047814287   SL0361U1 375MA LOG 1.0MIN *2574WK 193047951203   SL0361U1 MCUR LIN CH1-275MA CH2-700MA 1.0MIN *251LJH 191848669266
SL0361U1 150MA LIN 1.0MIN *2662EC 193048922165   SL0361U1 388MA LIN *266LYC 194994078104   SL0361U1 MCUR LIN CH1-325MA CH2-150MA 1.0MIN *280YNM 196183509499
SL0361U1 150MA LOG 1.0MIN *271TKT 194995345823   SL0361U1 400MA LIN *2574WN 193047951234   SL0361U1 MCUR LIN CH1-325MA CH2-200MA 1.0MIN *274V51 196182049446
SL0361U1 160MA LIN 1.0MIN *266T8K 194994122821   SL0361U1 400MA LIN 1.0MIN *2574WR 193047951258   SL0361U1 MCUR LIN CH1-325MA CH2-275MA 1.0MIN *264SNV 193048766943
SL0361U1 160MA LIN 10.0MIN *290760 197590877911   SL0361U1 400MA LOG *2574WP 193047951241   SL0361U1 MCUR LIN CH1-325MA CH2-425MA *2750EM 196182082894
SL0361U1 175MA LIN *2637HA 193048634068   SL0361U1 400MA LOG 1.0MIN *2574WS 193047951265   SL0361U1 MCUR LIN CH1-325MA CH2-425MA 1.0MIN *27501U 196182080388
SL0361U1 175MA LIN 1.0MIN *266T9X 194994123187   SL0361U1 425MA LIN *250R5U 191848416945   SL0361U1 MCUR LIN CH1-325MA CH2-575MA 1.0MIN *269AXM 194994751984
SL0361U1 175MA LIN 10.0MIN *266T9Y 194994123163   SL0361U1 425MA LIN 1.0MIN *251LK6 191848669495   SL0361U1 MCUR LIN CH1-375MA CH2-175MA 1.0MIN *267C0M 194994259237
SL0361U1 175MA LOG *266TA1 194994123231   SL0361U1 425MA LIN 10.0MIN *2576NS 193047964128   SL0361U1 MCUR LIN CH1-410MA CH2-325MA 1.0MIN *27252A 194995430130
SL0361U1 175MA LOG 1.0MIN *271TKM 194995345809   SL0361U1 425MA LOG *250H00 191848341858   SL0361U1 MCUR LIN CH1-425MA CH2-150MA 1.0MIN *279T9J 196183228673
SL0361U1 190MA LIN *269XG2 194994896746   SL0361U1 425MA LOG 1.0MIN *251MNK 191848680827   SL0361U1 MCUR LIN CH1-425MA CH2-225MA 1.0MIN *274V54 196182049477
SL0361U1 200MA LIN *2659LC 193048851922   SL0361U1 450MA LIN *2574W2 193047951067   SL0361U1 MCUR LIN CH1-425MA CH2-325MA *251LA6 191848667248
SL0361U1 200MA LIN 1.0MIN *266TA4 194994123255   SL0361U1 450MA LIN 1.0MIN *2574WF 193047951173   SL0361U1 MCUR LIN CH1-425MA CH2-325MA 1.0MIN *251LK2 191848669457
SL0361U1 200MA LOG *266TAF 194994123323   SL0361U1 450MA LIN 10.0MIN *266THL 194994124801   SL0361U1 MCUR LIN CH1-425MA CH2-375MA *266R92 194994106319
SL0361U1 200MA LOG 1.0MIN *2799N1 196183106100   SL0361U1 450MA LOG *2574W8 193047951111   SL0361U1 MCUR LIN CH1-425MA CH2-575MA *251LA7 191848667255
SL0361U1 225MA LIN *2634MA 193048610949   SL0361U1 450MA LOG 1.0MIN *2574WL 193047951210   SL0361U1 MCUR LIN CH1-425MA CH2-575MA 1.0MIN *251LK8 191848669464
SL0361U1 225MA LIN 1.0MIN *266425 193048935349   SL0361U1 475MA LIN *2574W3 193047951043   SL0361U1 MCUR LIN CH1-425MA CH2-700MA *251LA8 191848667231
SL0361U1 225MA LOG *275V0R 196182281877   SL0361U1 475MA LIN 1.0MIN *2574WG 193047951166   SL0361U1 MCUR LIN CH1-425MA CH2-700MA 1.0MIN *251LLJ 191848669839
SL0361U1 225MA LOG 1.0MIN *280WH5 196183491084   SL0361U1 475MA LIN 10.0MIN *2645RV 193048720198   SL0361U1 MCUR LIN CH1-525MA CH2-325MA 1.0MIN *2667UT 193048965797
SL0361U1 230MA LOG *26197E 193048446289   SL0361U1 475MA LOG *2574W9 193047951128   SL0361U1 MCUR LIN CH1-525MA CH2-500MA 1.0MIN *278A5R 196182872310
SL0361U1 250MA LIN *2574VY 193047951029   SL0361U1 475MA LOG 1.0MIN *2574WM 193047951227   SL0361U1 MCUR LIN CH1-575MA CH2-325MA *251LA9 191848667286
SL0361U1 250MA LIN 1.0MIN *2574WA 193047951142   SL0361U1 485MA LIN 1.0MIN *266TJM 194994125105   SL0361U1 MCUR LIN CH1-575MA CH2-325MA 1.0MIN *251LLL 191848669907
SL0361U1 250MA LIN 10.0MIN *25780R 193047974189   SL0361U1 485MA LIN 10.0MIN *266TJR 194994125129   SL0361U1 MCUR LIN CH1-575MA CH2-425MA *251LAA 191848667293
SL0361U1 250MA LOG *2574W4 193047951098   SL0361U1 485MA LOG *266TJP 194994125143   SL0361U1 MCUR LIN CH1-575MA CH2-425MA 1.0MIN *251LLM 191848669884
SL0361U1 250MA LOG 1.0MIN *2574WH 193047951180   SL0361U1 510MA LIN 1.0MIN *2800VH 196183280879   SL0361U1 MCUR LIN CH1-700MA CH2-325MA *251LAE 191848667279
SL0361U1 260MA LIN *25649A 193047824712   SL0361U1 525MA LIN 1.0MIN *264TS5 193048769722   SL0361U1 MCUR LIN CH1-700MA CH2-325MA 1.0MIN *251LLR 191848669877
SL0361U1 260MA LIN 1.0MIN *277PS5 196182728846   SL0361U1 525MA LIN 10.0MIN *266TJJ 194994125044   SL0361U1 MCUR LIN CH1-700MA CH2-375MA *27784X 196182614156
SL0361U1 275MA LIN *251L6R 191848666142   SL0361U1 525MA LOG *266TJG 194994125068   SL0361U1 MCUR LIN CH1-700MA CH2-425MA *251LAF 191848667330
SL0361U1 275MA LIN 1.0MIN *251LJA 191848669235   SL0361U1 550MA LIN 1.0MIN *266TJL 194994125082   SL0361U1 MCUR LIN CH1-700MA CH2-425MA 1.0MIN *251LLT 191848669976
SL0361U1 275MA LIN 10.0MIN *279T9A 196183228611   SL0361U1 550MA LIN 10.0MIN *266TJ3 194994124955   SL0361U1 MCUR LOG CH1-275MA CH2-325MA *251LAH 191848667323
SL0361U1 275MA LOG *251LAG 191848667316   SL0361U1 550MA LOG *266THU 194994124870   SL0361U1 MCUR LOG CH1-275MA CH2-325MA 1.0MIN *251LLX 191848669921
SL0361U1 275MA LOG 1.0MIN *251LLV 191848669969   SL0361U1 560MA LIN 1.0MIN *2738AK 194995690084   SL0361U1 MCUR LOG CH1-275MA CH2-425MA *251LAJ 191848667347
SL0361U1 300MA LIN *2574W0 193047951036   SL0361U1 575MA LIN *251LAC 191848667309   SL0361U1 MCUR LOG CH1-275MA CH2-425MA 1.0MIN *251LM1 191848670002
SL0361U1 300MA LIN 1.0MIN *2574WC 193047951135   SL0361U1 575MA LIN 1.0MIN *251LLP 191848669891   SL0361U1 MCUR LOG CH1-275MA CH2-575MA *251LAK 191848667354
SL0361U1 300MA LIN 10.0MIN *2645S5 193048720266   SL0361U1 575MA LOG *251LAT 191848667460   SL0361U1 MCUR LOG CH1-275MA CH2-575MA 1.0MIN *251LM2 191848670019
SL0361U1 300MA LOG *2574W6 193047951074   SL0361U1 575MA LOG 1.0MIN *251MNS 191848680858   SL0361U1 MCUR LOG CH1-275MA CH2-700MA *251LAL 191848667378
SL0361U1 300MA LOG 1.0MIN *2574WJ 193047951197   SL0361U1 585MA LIN 1.0MIN *266TGN 194994124542   SL0361U1 MCUR LOG CH1-275MA CH2-700MA 1.0MIN *251MNF 191848680773
SL0361U1 325MA LIN *251LA4 191848667217   SL0361U1 585MA LIN 10.0MIN *266TGC 194994124504   SL0361U1 MCUR LOG CH1-425MA CH2-325MA *251LAM 191848667385
SL0361U1 325MA LIN 1.0MIN *251LJM 191848669327   SL0361U1 585MA LOG *266TGK 194994124498   SL0361U1 MCUR LOG CH1-425MA CH2-325MA 1.0MIN *251MNJ 191848680797
SL0361U1 325MA LIN 10.0MIN *280YYP 196183511904   SL0361U1 700MA LIN *265YV8 193048901252   SL0361U1 MCUR LOG CH1-425MA CH2-575MA *251LAN 191848667408
SL0361U1 325MA LOG *250GUS 191848341803   SL0361U1 700MA LOG *257G2C 193047997232   SL0361U1 MCUR LOG CH1-425MA CH2-575MA 1.0MIN *251MNL 191848680810
SL0361U1 325MA LOG 1.0MIN *251MNG 191848680803   SL0361U1 800MA LOG *2568KR 193047857222   SL0361U1 MCUR LOG CH1-425MA CH2-700MA *251LAP 191848667415
SL0361U1 350MA LIN *251LA5 191848667224   SL0361U1 MCUR LIN CH1-175MA CH2-150MA 1.0MIN *278M29 196182944321   SL0361U1 MCUR LOG CH1-425MA CH2-700MA 1.0MIN *251MNM 191848680834
SL0361U1 350MA LIN 1.0MIN *251LJN 191848669341   SL0361U1 MCUR LIN CH1-225MA CH2-275MA 1.0MIN *27289F 194995454815   SL0361U1 MCUR LOG CH1-575MA CH2-325MA *251LAR 191848667422
SL0361U1 350MA LOG *259KG3 191723076424   SL0361U1 MCUR LIN CH1-250MA CH2-215MA 1.0MIN *27252E 194995430123   SL0361U1 MCUR LOG CH1-575MA CH2-325MA 1.0MIN *251MNP 191848680872
SL0361U1 350MA LOG 1.0MIN *251MNH 191848680780   SL0361U1 MCUR LIN CH1-250MA CH2-275MA 1.0MIN *266V4A 194994138440   SL0361U1 MCUR LOG CH1-575MA CH2-425MA *251LAS 191848667439
SL0361U1 375MA LIN *2574W1 193047951050   SL0361U1 MCUR LIN CH1-275MA CH2-225MA 1.0MIN *274EM5 194995945221   SL0361U1 MCUR LOG CH1-575MA CH2-425MA 1.0MIN *251MNR 191848680865
SL0361U1 375MA LIN 1.0MIN *2574WE 193047951159   SL0361U1 MCUR LIN CH1-275MA CH2-325MA *251L9Y 191848667163   SL0361U1 MCUR LOG CH1-700MA CH2-325MA *251LAU 191848667453
SL0361U1 375MA LIN 10.0MIN *266TAL 194994123439   SL0361U1 MCUR LIN CH1-275MA CH2-325MA 1.0MIN *251LJE 191848669242   SL0361U1 MCUR LOG CH1-700MA CH2-325MA 1.0MIN *251MNT 191848680889
SL0361U1 375MA LOG *2574W7 193047951104   SL0361U1 MCUR LIN CH1-275MA CH2-425MA *251LA0 191848667187   SL0361U1 MCUR LOG CH1-700MA CH2-425MA *251LAV 191848667446
SL0361U1 MCUR LIN CH1-275MA CH2-700MA *251LA2 191848667194   SL0361U1 MCUR LIN CH1-275MA CH2-425MA 1.0MIN *251LJF 191848669297   SL0361U1 MCUR LOG CH1-700MA CH2-425MA 1.0MIN *251MNU 191848680896
SL0361U1 MCUR LIN CH1-275MA CH2-700MA *251LA3 191848667170   SL0361U1 MCUR LIN CH1-275MA CH2-575MA *251LA1 191848667200   SL0361U1-CA24 350MA LOG *273SAT 194995809165
        SL0361U1 MCUR LIN CH1-275MA CH2-575MA 1.0MIN *251LJG 191848669303   SL0361U1-VLC-SF173 375MA LIN *254CYC 193047530927
                SL0361U1-VLC-SF197 425MA LIN *254A8G 193047516914
View AllClose

Additional Information

Our Part No.:
BS46-SOLO361/U
Manufacturer Part No.:
SL0361U1
Brand:
Acuity eldoLED SOLOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
30W
Max Output Current:
1400mA
Max Output Voltage:
55V
Dimming:
Dimmable
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
11.02" L x 1.18" W x 0.83" H
UL Class:
Class 2
Features:
Operating Range -20 ºC to +50 ºC / -4 ºF to +122 ºF, Terminal Connection
Warranty:
Manufacturer's
Case Size:
10
