eldoLED by Acuity

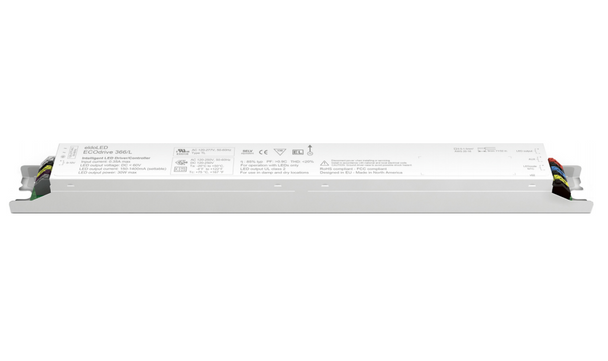

365/L ECOdrive (EC0365L3) eldoLED Programmable Constant Current LED Driver - 30W DALI-2 Dimming

(No reviews yet) Write a Review
SKU:
BS46-EC0365L3
MPN:
EC0365L3
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
  • 365/L ECOdrive (EC0365L3) eldoLED Programmable Constant Current LED Driver - 30W DALI-2 Dimming
  • 365/L ECOdrive (EC0365L3) eldoLED - Output Specifications
  • 365/L ECOdrive (EC0365L3) eldoLED - Control
  • 365/L ECOdrive (EC0365L3) eldoLED - Dimensions
  • 365/L ECOdrive (EC0365L3) eldoLED - Terminal Connections
  • eldoLED Form Factor
  • 365/L ECOdrive (EC0365L3) eldoLED - Program Code
MSRP: $75.00
Now: $59.95
Was: $75.00
— You save $15.05

Description


ECOdrive 365/L Programmable Constant Current LED Driver, 30W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, Single 2-55V Output, Dali-2 Dimming 1%-100%, Aux Power Port

eldoLED ECOdrive 365/L 30W LED Driver

ECOdrive, 30W, DALI-2 + AUX, 1 control channel, constant current, 1x 55V output, side feed, long metal

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic
  • Minimum Dimming Level: 1% (factory default) in 0.1% increments

If you do not enter the program code above before Add to Cart , we will contact after ordering to get the six digit alpha-numeric following the * located on a sticker on the driver so we can program it to this required spec. We are not able to ship with out the program code.

For example 600MA LIN is what we will need to program your driver prior to shipping.


Common Program Settings:

Model CI Code UPC Code Model CI Code UPC Code
EC0365L3 175MA LIN *2662KN 193048923704 EC0365L3 525MA LIN *2668E2 193048969726
EC0365L3 225MA LIN *25467E 193047485265 EC0365L3 550MA LIN *265XF7 193048889536
EC0365L3 250MA LIN *261SR2 193048466935 EC0365L3 575MA LIN *2673YG 194994203469
EC0365L3 260MA LIN *27682E 196182373770 EC0365L3 600MA LIN *2668E9 193048969795
EC0365L3 275MA LIN *2668WX 193048974331 EC0365L3 600MA LOG *2653Y7 193048804980
EC0365L3 300MA LIN *261SR3 193048466959 EC0365L3 625MA LIN *256S5S 193047904780
EC0365L3 300MA LOG *2653Y3 193048804966 EC0365L3 650MA LIN *2549J1 193047510691
EC0365L3 324MA LOG *254VFL 193047623797 EC0365L3 650MA LOG *2645LL 193048719017
EC0365L3 325MA LIN *261SR4 193048466942 EC0365L3 675MA LIN *270P42 194995076215
EC0365L3 350MA LIN *25467F 193047485258 EC0365L3 700MA LIN *2603A1 193048297003
EC0365L3 350MA LOG *264A66 191848063484 EC0365L3 700MA LOG *2598JH 193048210644
EC0365L3 400MA LIN *265X17 193048886160 EC0365L3 725MA LIN *252NX7 193047116770
EC0365L3 400MA LOG *279X1P 196183258649 EC0365L3 750MA LIN *260WSR 193048369564
EC0365L3 425MA LIN *26004N 193048271881 EC0365L3 750MA LOG *272V4V 194995598021
EC0365L3 450MA LIN *2578NX 193047978750 EC0365L3 800MA LIN *254CC8 193047525947
EC0365L3 450MA LOG *2653Y4 193048805017 EC0365L3 800MA LOG *2688AR 194994483038
EC0365L3 475MA LIN *2709T0 194994983514 EC0365L3 825MA LIN *254UGG 193047616126
EC0365L3 480MA LIN *29182V 198934134318 EC0365L3 850MA LOG *254YJG 193047647021
EC0365L3 485MA LIN *27682N 196182373848 EC0365L3 900MA LIN *25467G 193047485272
EC0365L3 500MA LIN *254JNV 193047553766 EC0365L3 950MA LIN *273VFK 194995833429
EC0365L3 520MA LOG *25500A 193047650908 EC0365L3 1050MA LOG *2587CM 193048086676
      EC0365L3 1125MA LOG *254YJF 193047647038
View AllClose

Additional Information

Our Part No.:
BS46-EC0365L3
Manufacturer Part No.:
EC0365L3
Brand:
Acuity eldoLED ECOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
30W
Max Output Current:
1400mA
Output Current Programmable Range:
150-1400mA
Max Output Voltage:
55V
Dimming:
DALI
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
12.6" (L) x 1.18" (W) x 1.02" (H)
UL Class:
Class 2
Features:
Long Case, Auxiliary Port, Terminal Connectors
Alternative Keywords:
EC0365L2, EC0365L1, EC0365L
Warranty:
Manufacturer's
Case Size:
10
