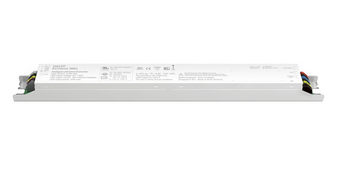

366/L SOLOdrive (SL0366L3) eldoLED Programmable Constant Current LED Driver - 30W 0-10V Dimming

(No reviews yet) Write a Review
SKU:
BS46-SOLO366/L2
MPN:
SL0366L3
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off
  • 366/L SOLOdrive (SL0366L3) eldoLED Programmable Constant Current LED Driver - 30W 0-10V Dimming
  • 366/L SOLOdrive (SL0366L3) eldoLED - Output Specifications
  • 366/L SOLOdrive (SL0366L3) eldoLED - Control
  • 366/L SOLOdrive (SL0366L3) eldoLED - Terminal Connections
  • 366/L SOLOdrive (SL0366L3) eldoLED - Dimensions
  • eldoLED Form Factor Overview
  • 366/L SOLOdrive (SL0366L3) eldoLED - Program Code
MSRP: $84.00
Now: $69.95
Was: $84.00
— You save $14.05

Description


SOLOdrive 366/L Programmable Constant Current LED Driver, 30W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, 2-55V Output, Analog 0-10V Dimming 0.1%-100% Dim-to-Dark, Auxiliary Port

eldoLED SOLOdrive 366/L 30W LED Driver

SOLOdrive AC, 30W, 0-10V + AUX, 1 control channel, constant current, 1 x 55V output, side feed, long metal

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic, SNL soft linear, SQU square
  • Minimum Dimming Level: 0.1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.

Common Custom Program Settings
Product Catalog Number CICode UPC   Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
SL0366L2 375MA LOG *259UN5 191723124125   SL0366L3 430MA LIN *274LH6 194995992256   SL0366L3 600MA LIN *25618S 193047801164
SL0366L2 525MA LOG *240H8C 190887148442   SL0366L3 430MA LOG *274LH9 194995992232   SL0366L3 600MA LIN 1.0MIN *275APN 196182159800
SL0366L2 750MA LIN *263LJF 191723913415   SL0366L3 440MA LIN *274M0C 194995996520   SL0366L3 600MA LIN 10.0MIN *2752GM 196182098987
SL0366L2 750MA LOG *263LJG 191723913422   SL0366L3 440MA LOG *274LHA 194995992287   SL0366L3 600MA LOG *2562EM 193047810029
SL0366L3 175MA LIN *2732Y8 194995649785   SL0366L3 450MA LIN *25213K 191848740330   SL0366L3 610MA LIN *274M13 194995996698
SL0366L3 175MA LIN 10.0MIN *2732Y9 194995649808   SL0366L3 450MA LIN 1.0MIN *25212X 191848740248   SL0366L3 615MA LOG *274M16 194995996742
SL0366L3 200MA LOG *28151V 196183548542   SL0366L3 450MA LOG *2665KL 193048947397   SL0366L3 625MA LIN *2629NU 193048552492
SL0366L3 225MA LOG *2665K8 193048947311   SL0366L3 450MA LOG 10.0MIN *2665KM 193048947403   SL0366L3 625MA LIN 1.0MIN *25213F 191848740293
SL0366L3 225MA LOG 10.0MIN *2665KA 193048947304   SL0366L3 470MA LIN *274LHN 194995992423   SL0366L3 625MA LOG *2629NV 193048552515
SL0366L3 250MA LIN 1.0MIN *275APG 196182159763   SL0366L3 475MA LIN 1.0MIN *25212Y 191848740262   SL0366L3 640MA LIN *253J9P 193047406277
SL0366L3 250MA LIN 10.0MIN *2732Y7 194995649778   SL0366L3 480MA LIN *274MAL 194995999163   SL0366L3 650MA LIN *274M17 194995996735
SL0366L3 250MA LOG *2778VP 196182619632   SL0366L3 480MA LOG *274LJ3 194995992515   SL0366L3 650MA LIN 1.0MIN *25213G 191848740309
SL0366L3 275MA LIN *27338C 194995651825   SL0366L3 500MA LIN *274M0G 194995996575   SL0366L3 650MA LOG *2778VL 196182619625
SL0366L3 275MA LIN 1.0MIN *273TSA 194995820405   SL0366L3 500MA LIN 1.0MIN *25213A 191848740255   SL0366L3 650MA SLN *254CYS 193047531023
SL0366L3 275MA LOG *2665KG 193048947366   SL0366L3 500MA LOG *274M0L 194995996599   SL0366L3 675MA LIN *25213L 191848740347
SL0366L3 275MA LOG 10.0MIN *2665KK 193048947335   SL0366L3 510MA LIN *274LJ5 194995992485   SL0366L3 675MA LIN 1.0MIN *25213H 191848740316
SL0366L3 290MA LIN *274LFF 194995991716   SL0366L3 520MA LIN *274M0N 194995996582   SL0366L3 675MA LOG *25213N 191848740361
SL0366L3 290MA LOG *274LFJ 194995991754   SL0366L3 520MA LOG *2563GP 193047818476   SL0366L3 680MA LIN *274M19 194995996728
SL0366L3 300MA LIN *274LFL 194995991785   SL0366L3 525MA LIN *2629NN 193048552423   SL0366L3 690MA LOG *274M1E 194995996759
SL0366L3 300MA LOG *274LGJ 194995992126   SL0366L3 525MA LIN 1.0MIN *25213C 191848740279   SL0366L3 700MA LIN *25213M 191848740354
SL0366L3 310MA LIN *274LGN 194995992133   SL0366L3 525MA LOG *2560P8 193047796774   SL0366L3 700MA LIN 1.0MIN *25213J 191848740323
SL0366L3 325MA LIN 1.0MIN *273TSG 194995820467   SL0366L3 530MA LIN *2600MK 193048275636   SL0366L3 700MA LOG *2560P9 193047796828
SL0366L3 340MA LOG *270GF8 194995021253   SL0366L3 530MA LOG *281G55 196183617743   SL0366L3 710MA LIN *274M1G 194995996766
SL0366L3 350MA LIN *2556JW 193047699464   SL0366L3 540MA LIN *274M0P 194995996636   SL0366L3 710MA LOG *274M1H 194995996827
SL0366L3 350MA LIN 1.0MIN *275APH 196182159756   SL0366L3 550MA LIN *269NWE 194994833703   SL0366L3 725MA LIN 1.0MIN *275APS 196182159824
SL0366L3 350MA LOG *249WH8 191848063583   SL0366L3 550MA LIN 1.0MIN *25213E 191848740286   SL0366L3 730MA LIN *274M1J 194995996810
SL0366L3 360MA LIN *274LGV 194995992089   SL0366L3 550MA LIN 10.0MIN *2752GP 196182098970   SL0366L3 750MA LOG *270GFA 194995021246
SL0366L3 370MA LIN *274LGY 194995992218   SL0366L3 550MA LOG *2665PE 193048948462   SL0366L3 775MA LIN *279A69 196183110282
SL0366L3 370MA LOG *270GF9 194995021260   SL0366L3 550MA LOG 10.0MIN *2665PF 193048948448   SL0366L3 775MA LOG *272FSW 194995498673
SL0366L3 375MA LIN *2778VN 196182619656   SL0366L3 560MA LIN *274M0T 194995996605   SL0366L3 788MA LOG *2560NP 193047796651
SL0366L3 375MA LIN 1.0MIN *275APJ 196182159794   SL0366L3 560MA LOG *274M0V 194995996643   SL0366L3 800MA LIN *274M1M 194995996834
SL0366L3 390MA LIN *274LH2 194995992164   SL0366L3 570MA LIN *274M11 194995996681   SL0366L3 800MA SLN *2541X4 193047453509
SL0366L3 400MA LIN *290FKS 197590935161   SL0366L3 570MA LOG *270GFH 194995021284   SL0366L3 825MA LOG *2665PH 193048948431
SL0366L3 400MA LOG *2554L4 193047684880   SL0366L3 575MA LIN *25618R 193047801157   SL0366L3 825MA LOG 10.0MIN *2665PJ 193048948455
SL0366L3 420MA LOG *274LH3 194995992188   SL0366L3 575MA LIN 1.0MIN *273TSN 194995820504   SL0366L3 920MA LOG *275PWK 196182248764
SL0366L3 425MA LIN *2778VR 196182619663   SL0366L3 575MA LOG *2562EJ 193047809979
SL0366L3 425MA LIN 1.0MIN *25212W 191848740231
SL0366L3 425MA LIN 10.0MIN *29599W 196183892621
View AllClose

Additional Information

Our Part No.:
BS46-SOLO366/L2
Manufacturer Part No.:
SL0366L3
Brand:
Acuity eldoLED SOLOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
30W
Max Output Current:
1400mA
Output Current Programmable Range:
150-1400mA
Max Output Voltage:
55V
Dimming:
Analog (0-10V)
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
12.6" L x 1.18" W x 1.02" H Mounting Center 12.2"
UL Class:
Class 2
Features:
Side Feed, Auxiliary
Alternative Keywords:
SL0366L2, SL0366L1, SL0366L
Warranty:
Manufacturer's
Case Size:
10
