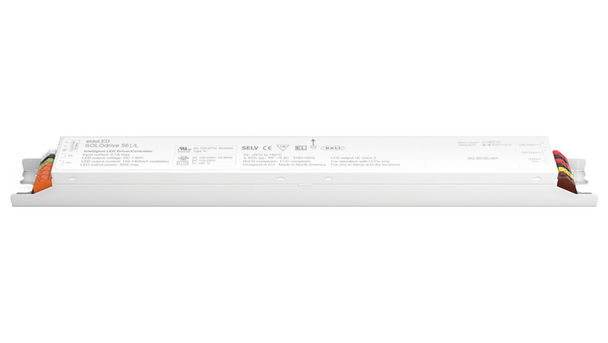

561/L SOLOdrive (SL0561L3) eldoLED Programmable Constant Current LED Driver - 50W 0-10V Dimming

(No reviews yet) Write a Review
SKU:
BS46-SL0561L3
MPN:
SL0561L3
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
  • 561/L SOLOdrive (SL0561L3) eldoLED Programmable Constant Current LED Driver - 50W 0-10V Dimming
  • 561/L SOLOdrive (SL0561L3) eldoLED - Output Specifications
  • 561/L SOLOdrive (SL0561L3) eldoLED - Control
  • 561/L SOLOdrive (SL0561L3) eldoLED - Dimming Curves
  • 561/L SOLOdrive (SL0561L3) eldoLED - Terminal Connectors
  • 561/L SOLOdrive (SL0561L3) eldoLED - Dimensions
  • eldoLED Form Factor Overview
  • eldoLED Custom Programming Information
MSRP: $100.00
Now: $79.95
Was: $100.00
— You save $20.05

Description


SOLOdrive 561/L Programmable Constant Current LED Driver, 50W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, 2-55V Output, Analog 0-10V Dimming 0.1%-100% Dim-to-Dark

eldoLED SOLOdrive 561/L 50W LED Driver

SOLOdrive AC, 50W, 0-10V, 1 control channel, programmable constant current, 2-55V output, side feed, long metal

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic, SNL soft linear, SQU square
  • Minimum Dimming Level: 0.1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.


Common Custom Program Codes
Product Catalog Number CICode UPC   Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
SL0561L2 1050MA LIN *262RPH 191723724288   SL0561L3 500MA LIN 1.0MIN *276768 196182366918   SL0561L3 MCUR LIN CH1-1050MA CH2-16V ON 1.0MIN *273HPV 194995748907
SL0561L2 675MA LIN *262GW1 191723640540   SL0561L3 500MA LOG *260SNP 193048364934   SL0561L3 MCUR LIN CH1-220MA CH2-425MA 1.0MIN *268LR2 194994570257
SL0561L2 675MA LOG *258FMW 190887916614   SL0561L3 510MA LIN 1.0MIN *2800W4 196183281043   SL0561L3 MCUR LIN CH1-275MA CH2-425MA *251H6P 191848634868
SL0561L2 780MA LOG *258FN8 190887916720   SL0561L3 525MA LIN *257G8Y 193047999168   SL0561L3 MCUR LIN CH1-275MA CH2-425MA 1.0MIN *251JSH 191848651940
SL0561L2 900MA LIN *258G1M 190887919431   SL0561L3 525MA LIN 1.0MIN *257GVY 193048004229   SL0561L3 MCUR LIN CH1-275MA CH2-575MA *251H6V 191848634905
SL0561L2 900MA LOG *258G1N 190887919448   SL0561L3 525MA LIN 10.0MIN *266TJ0 194994124917   SL0561L3 MCUR LIN CH1-275MA CH2-575MA 1.0MIN *251JSK 191848652008
SL0561L3 1000MA LOG *2908GU 197590889235   SL0561L3 525MA LOG *257GU3 193048003673   SL0561L3 MCUR LIN CH1-275MA CH2-700MA *251H6W 191848634882
SL0561L3 1015MA LIN 1.0MIN *27676A 196182366925   SL0561L3 525MA LOG 1.0MIN *257HCM 193048008357   SL0561L3 MCUR LIN CH1-275MA CH2-700MA 1.0MIN *251JSR 191848651988
SL0561L3 1050MA LIN 1.0MIN *2684GC 194994453024   SL0561L3 550MA LIN 1.0MIN *266TJ9 194994124986   SL0561L3 MCUR LIN CH1-325MA CH2-275MA 1.0MIN *266402 193048934830
SL0561L3 1050MA LOG *273VTW 194995836390   SL0561L3 550MA LIN 10.0MIN *2628YX 193048547009   SL0561L3 MCUR LIN CH1-400MA CH2-615MA 1.0MIN *278YA4 196183027122
SL0561L3 1139MA LIN 1.0MIN *2680FA 194994421085   SL0561L3 550MA LOG *266TGU 194994124566   SL0561L3 MCUR LIN CH1-410MA CH2-325MA 1.0MIN *272522 194995430116
SL0561L3 1172MA LIN 1.0MIN *2680F7 194994421092   SL0561L3 575MA LIN *250H2E 191848341896   SL0561L3 MCUR LIN CH1-425MA CH2-325MA *251H71 191848634950
SL0561L3 1200MA LIN *2911JF 198934076045   SL0561L3 575MA LIN 1.0MIN *264LMK 191848186084   SL0561L3 MCUR LIN CH1-425MA CH2-325MA 1.0MIN *251JSV 191848652046
SL0561L3 1215MA LIN *267VYN 194994392217   SL0561L3 575MA LIN 10.0MIN *2823GE 196183770387   SL0561L3 MCUR LIN CH1-425MA CH2-400MA 1.0MIN *275VVT 196182288845
SL0561L3 1275MA LIN 0.6MIN *2633SM 193048603910   SL0561L3 575MA LOG *251HT8 191848640494   SL0561L3 MCUR LIN CH1-425MA CH2-575MA *251H73 191848634943
SL0561L3 1400MA LIN 0.6MIN *2633SP 193048603934   SL0561L3 575MA LOG 1.0MIN *251K50 191848655481   SL0561L3 MCUR LIN CH1-425MA CH2-575MA 1.0MIN *251JSX 191848652084
SL0561L3 1400MA LOG *2551H0 193047661775   SL0561L3 585MA LIN 1.0MIN *266TG8 194994124429   SL0561L3 MCUR LIN CH1-425MA CH2-700MA *251H75 191848634967
SL0561L3 150MA LIN *261SRN 193048467116   SL0561L3 585MA LIN 10.0MIN *266TFS 194994124276   SL0561L3 MCUR LIN CH1-425MA CH2-700MA 1.0MIN *251JSY 191848652060
SL0561L3 150MA LIN 1.0MIN *2662E8 193048922103   SL0561L3 585MA LOG *266TFT 194994124283   SL0561L3 MCUR LIN CH1-560MA CH2-465MA *2776U1 196182603808
SL0561L3 150MA LOG *259J9K 193048240917   SL0561L3 600MA LIN *2576NL 193047964050   SL0561L3 MCUR LIN CH1-575MA CH2-325MA *251H7M 191848635117
SL0561L3 175MA LIN 1.0MIN *26549J 193048807622   SL0561L3 600MA LIN 1.0MIN *2576T0 193047965088   SL0561L3 MCUR LIN CH1-575MA CH2-325MA 1.0MIN *251JT1 191848652107
SL0561L3 190MA LIN *269XG4 194994896739   SL0561L3 600MA LIN 10.0MIN *25780U 193047974172   SL0561L3 MCUR LIN CH1-575MA CH2-425MA *251HSS 191848640364
SL0561L3 200MA LIN *2672PN 194994193326   SL0561L3 600MA LOG *257GU4 193048003680   SL0561L3 MCUR LIN CH1-575MA CH2-425MA 1.0MIN *251JTA 191848652237
SL0561L3 200MA LIN 1.0MIN *268MWK 194994579908   SL0561L3 600MA LOG 1.0MIN *257HCS 193048008388   SL0561L3 MCUR LIN CH1-575MA CH2-700MA *251HST 191848640357
SL0561L3 215MA LIN 1.0MIN *2696JE 194994715948   SL0561L3 625MA LIN *257G95 193047999243   SL0561L3 MCUR LIN CH1-575MA CH2-700MA 1.0MIN *251JTF 191848652220
SL0561L3 220MA LIN 1.0MIN *275VVR 196182288814   SL0561L3 625MA LIN 1.0MIN *257GW9 193048004311   SL0561L3 MCUR LIN CH1-700MA CH2-150MA 1.0MIN *273XTR 194995851959
SL0561L3 225MA LIN 1.0MIN *2633SC 193048603835   SL0561L3 625MA LIN 10.0MIN *266TFH 194994124214   SL0561L3 MCUR LIN CH1-700MA CH2-325MA *251HSU 191848640388
SL0561L3 225MA LOG *275V1P 196182282102   SL0561L3 625MA LOG *257GU6 193048003666   SL0561L3 MCUR LIN CH1-700MA CH2-325MA 1.0MIN *251JTJ 191848652190
SL0561L3 225MA LOG 1.0MIN *269WS5 194994890928   SL0561L3 625MA LOG 1.0MIN *257HCT 193048008371   SL0561L3 MCUR LIN CH1-700MA CH2-425MA *251L0C 191848663868
SL0561L3 250MA LIN 1.0MIN *2696L6 194994716464   SL0561L3 650MA LIN *257GTS 193048003574   SL0561L3 MCUR LIN CH1-700MA CH2-425MA 1.0MIN *251L0T 191848664001
SL0561L3 260MA LIN *267VYS 194994392231   SL0561L3 650MA LIN 1.0MIN *257GYL 193048004977   SL0561L3 MCUR LIN CH1-700MA CH2-575MA *251L0J 191848663912
SL0561L3 267MA LIN 1.0MIN *2680F8 194994421108   SL0561L3 650MA LIN 10.0MIN *266TF7 194994124122   SL0561L3 MCUR LIN CH1-700MA CH2-575MA 1.0MIN *251L0V 191848664018
SL0561L3 275MA LIN *2732Y3 194995649747   SL0561L3 650MA LOG *257GU8 193048003727   SL0561L3 MCUR LIN CH1-850MA CH2-715MA *2776TM 196182603709
SL0561L3 275MA LIN 1.0MIN *272YR2 194995625253   SL0561L3 650MA LOG 1.0MIN *257HCX 193048008425   SL0561L3 MCUR LIN CH1-900MA CH2-16V ON 1.0MIN *273HPR 194995748877
SL0561L3 290MA LOG *278UKP 196182997310   SL0561L3 675MA LIN 1.0MIN *296EUU 199871224377   SL0561L3 MCUR LOG CH1-275MA CH2-425MA *251HSV 191848640395
SL0561L3 310MA LIN 1.0MIN *2680F6 194994421078   SL0561L3 675MA LIN 10.0MIN *296EV2 199871224445   SL0561L3 MCUR LOG CH1-275MA CH2-425MA 1.0MIN *251JUN 191848652565
SL0561L3 325MA LIN *251H6Y 191848634974   SL0561L3 690MA LIN *2535J6 193047291873   SL0561L3 MCUR LOG CH1-275MA CH2-575MA *251HSW 191848640371
SL0561L3 325MA LIN 1.0MIN *251JSS 191848652039   SL0561L3 700MA LIN *250H1S 191848341902   SL0561L3 MCUR LOG CH1-275MA CH2-575MA 1.0MIN *251JUR 191848652596
SL0561L3 325MA LIN 10.0MIN *28216R 196183754042   SL0561L3 700MA LIN 1.0MIN *251JUH 191848652510   SL0561L3 MCUR LOG CH1-275MA CH2-700MA *251HSX 191848640401
SL0561L3 325MA LOG *251HSY 191848640418   SL0561L3 700MA LIN 10.0MIN *266TEX 194994124054   SL0561L3 MCUR LOG CH1-275MA CH2-700MA 1.0MIN *251JUS 191848652626
SL0561L3 325MA LOG 1.0MIN *251JUU 191848652619   SL0561L3 700MA LIN J50 *274ELR 194995945054   SL0561L3 MCUR LOG CH1-425MA CH2-325MA *251HT0 191848640425
SL0561L3 350MA LIN *257HE0 193048008456   SL0561L3 700MA LOG *251HTC 191848640500   SL0561L3 MCUR LOG CH1-425MA CH2-325MA 1.0MIN *251JV6 191848652701
SL0561L3 350MA LIN 1.0MIN *257HEE 193048008555   SL0561L3 700MA LOG 0.6MIN *26527K 193048790597   SL0561L3 MCUR LOG CH1-425MA CH2-575MA *251HT2 191848640432
SL0561L3 350MA LOG *263MC0 191723925135   SL0561L3 700MA LOG 1.0MIN *251K55 191848655511   SL0561L3 MCUR LOG CH1-425MA CH2-575MA 1.0MIN *251K4V 191848655436
SL0561L3 350MA LOG 1.0MIN *257HEH 193048008579   SL0561L3 715MA LIN 1.0MIN *2765C7 196182352638   SL0561L3 MCUR LOG CH1-425MA CH2-580MA 1.0MIN *269PSL 194994840923
SL0561L3 360MA LIN 1.0MIN *2680FC 194994421146   SL0561L3 720MA LOG *2603JG 193048298789   SL0561L3 MCUR LOG CH1-425MA CH2-700MA *251HT3 191848640456
SL0561L3 375MA LIN *257G84 193047998956   SL0561L3 725MA LIN *257GTT 193048003598   SL0561L3 MCUR LOG CH1-425MA CH2-700MA 1.0MIN *251K4W 191848655467
SL0561L3 375MA LIN 1.0MIN *257GUJ 193048003765   SL0561L3 725MA LIN 1.0MIN *257HAY 193048008159   SL0561L3 MCUR LOG CH1-575MA CH2-325MA *251HT4 191848640487
SL0561L3 375MA LOG *257GTV 193048003628   SL0561L3 725MA LIN 10.0MIN *266TEC 194994123873   SL0561L3 MCUR LOG CH1-575MA CH2-325MA 1.0MIN *251K4X 191848655450
SL0561L3 375MA LOG 1.0MIN *257HCE 193048008258   SL0561L3 725MA LOG *257GUC 193048003758   SL0561L3 MCUR LOG CH1-575MA CH2-425MA *251HT6 191848640470
SL0561L3 388MA LIN *266KLJ 194994066781   SL0561L3 725MA LOG 1.0MIN *257HCY 193048008432   SL0561L3 MCUR LOG CH1-575MA CH2-425MA 1.0MIN *251K4Y 191848655474
SL0561L3 400MA LIN *257HE1 193048008470   SL0561L3 750MA LIN *257HE4 193048008494   SL0561L3 MCUR LOG CH1-575MA CH2-700MA *251HT9 191848640517
SL0561L3 400MA LIN 1.0MIN *257HEF 193048008548   SL0561L3 750MA LIN 1.0MIN *257HEG 193048008586   SL0561L3 MCUR LOG CH1-575MA CH2-700MA 1.0MIN *251K51 191848655504
SL0561L3 400MA LOG *257HE6 193048008517   SL0561L3 750MA LIN 10.0MIN *266TE0 194994123750   SL0561L3 MCUR LOG CH1-700MA CH2-325MA *251HTA 191848640524
SL0561L3 400MA LOG 1.0MIN *257HEK 193048008609   SL0561L3 750MA LOG *257HE8 193048008524   SL0561L3 MCUR LOG CH1-700MA CH2-325MA 1.0MIN *251K52 191848655498
SL0561L3 425MA LIN *250H4S 191848341919   SL0561L3 750MA LOG 1.0MIN *257HEM 193048008623   SL0561L3 MCUR LOG CH1-700MA CH2-425MA *251L0L 191848663967
SL0561L3 425MA LIN 1.0MIN *264LMG 191848186060   SL0561L3 775MA LIN *2576P1 193047964159   SL0561L3 MCUR LOG CH1-700MA CH2-425MA 1.0MIN *251L5T 191848665879
SL0561L3 425MA LIN 10.0MIN *25780P 193047974134   SL0561L3 775MA LIN 1.0MIN *2576T6 193047965156   SL0561L3 MCUR LOG CH1-700MA CH2-575MA *251L0N 191848663950
SL0561L3 425MA LOG *251HT1 191848640449   SL0561L3 775MA LIN 10.0MIN *25780W 193047974141   SL0561L3 MCUR LOG CH1-700MA CH2-575MA 1.0MIN *251L5V 191848665893
SL0561L3 425MA LOG 1.0MIN *251JV9 191848652770   SL0561L3 780MA LIN *2603JF 193048298765   SL0561L3 MCUR LOG CH1-725MA CH2-16V ON 1.0MIN *273HPT 194995748884
SL0561L3 450MA LIN *257G8T 193047999038   SL0561L3 800MA LIN *2630MU 193048578928   SL0561L3-VLC 575MA LIN *254CXK 193047530699
SL0561L3 450MA LIN 1.0MIN *257GUK 193048003819   SL0561L3 800MA LIN 1.0MIN *280TAC 196183466051   SL0561L3-VLC MCUR LIN CH1-1025MA CH2-16V ON 1.0MIN *273HPN 194995748860
SL0561L3 450MA LIN 10.0MIN *266THM 194994124818   SL0561L3 800MA LOG 0.6MIN *26527M 193048790610   SL0561L3-VLC-SF197 425MA LIN *254A8E 193047516921
SL0561L3 450MA LOG *257GTW 193048003635   SL0561L3 825MA LIN 1.0MIN *26705K 194994172277   SL0561L3 480MA DTW LIN 27-50K 10-10LM *285F9T 197589707786
SL0561L3 450MA LOG 1.0MIN *257HCH 193048008302   SL0561L3 835MA LIN 1.0MIN *283U5C 197589334197   SL0561L3 1175MA LOG 10.0MIN 12.0VAUX *263LJM 191723913484
SL0561L3 475MA LIN *257G8V 193047999151   SL0561L3 850MA LIN 1.0MIN *2765C5 196182352621
SL0561L3 475MA LIN 1.0MIN *257GUU 193048003888   SL0561L3 860MA LIN *2603JJ 193048298796
SL0561L3 475MA LIN 10.0MIN *2645S4 193048720259   SL0561L3 925MA LIN 10.0MIN *274VT8 196182054662
SL0561L3 475MA LOG *257GU1 193048003642   SL0561L3 950MA LIN 0.6MIN *2594H8 193048180169
SL0561L3 475MA LOG 1.0MIN *257HCJ 193048008326   SL0561L3 975MA LIN 1.0MIN *2680FF 194994421139
SL0561L3 485MA LIN 1.0MIN *266THW 194994124894
SL0561L3 485MA LIN 10.0MIN *266THY 194994124900
SL0561L3 485MA LOG *266THX 194994124931
View AllClose

Additional Information

Our Part No.:
BS46-SL0561L3
Manufacturer Part No.:
SL0561L3
Brand:
Acuity eldoLED SOLOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
50W
Max Output Current:
1400mA
Output Current Programmable Range:
150-1400mA
Max Output Voltage:
55V
Dimming:
Analog (0-10V)
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
See PDF Link Provided
UL Class:
Class 2
Features:
2 Output Channels, Side Feed
Alternative Keywords:
SL0561L2, SL0561L1, SL0561L
Warranty:
Manufacturer's
Case Size:
10
