eldoLED by Acuity

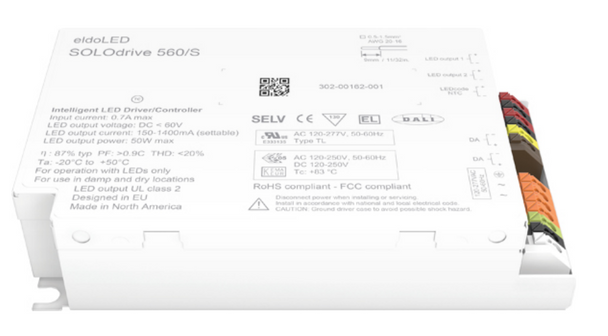

561/S SOLOdrive (SL0561S1) eldoLED Programmable Constant Current LED Driver - 50W 0-10V Dimming

(No reviews yet) Write a Review
SKU:
BS46-SL561S1
UPC:
197590402007
MPN:
SL0561S5
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off
  • 561/S SOLOdrive (SL0561S1) eldoLED Programmable Constant Current LED Driver - 50W 0-10V Dimming
  • 561/S SOLOdrive (SL0561S1) eldoLED - Output Specifications
  • 561/S SOLOdrive (SL0561S1) eldoLED - Control
  • eldoLED SOLOdrive 561/S - Dim Curve Options
  • 561/S SOLOdrive (SL0561S1) eldoLED - Terminal Connections
  • eldoLED Form Factor Overview
  • 561/S SOLOdrive (SL0561S1) eldoLED - Dimensions
  • 561/S SOLOdrive (SL0561S1) eldoLED - Program Code
MSRP: $110.00
Now: $89.95
Was: $110.00
— You save $20.05

Description


SOLOdrive 561/S Programmable Constant Current LED Driver, 50W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, 2 x 1-55V Outputs, Analog 0-10V Dimming 0.1%-100% Dim-to-Dark, Side Exit Stud Mounting

eldoLED SOLOdrive 561/S 50W LED Driver

SOLOdrive, 20W, 0-10V, 1 control channel, constant current, 2 x 55V output, side feed, square metal case/plastic lead cover

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic (factory default), SNL soft linear, SQU square
  • Minimum Dimming Level: 0.1% (factory default) in 0.1% increments

If you do not enter the program code above before Add to Cart , we will contact after ordering to get the six digit alpha-numeric following the * located on a sticker on the driver so we can program it to this required spec. We are not able to ship with out the program code.

For example 600MA LIN is what we will need to program your driver prior to shipping.


Common Custom Setting
Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
SL0561S5 1000MA LIN *279XT4 196183264848   SL0561S5 425MA LOG *268TEV 194994616979
SL0561S5 1050MA LIN *278JE6 196182922855   SL0561S5 450MA LIN *268TEY 194994617037
SL0561S5 1050MA LIN 12VAUX *257JV8 193048013443   SL0561S5 450MA LIN 10.0MIN *268TF1 194994617051
SL0561S5 1050MA LOG *26073E 193048327311   SL0561S5 450MA LOG *268TF4 194994617082
SL0561S5 1130MA LOG *2802SX 196183294562   SL0561S5 500MA LIN *268TFL 194994617228
SL0561S5 1200MA LOG *2626VE 193048529692   SL0561S5 500MA LIN 10.0MIN *268TFM 194994617235
SL0561S5 1225MA LOG *269EJF 194994764823   SL0561S5 500MA LOG *2609VP 193048349351
SL0561S5 1400MA LIN *2757V4 196182138218   SL0561S5 525MA LIN *268TFN 194994617211
SL0561S5 1400MA LOG *273CCW 194995713769   SL0561S5 525MA LIN 10.0MIN *268TFP 194994617280
SL0561S5 150MA LIN 10.0MIN *2925UH 198934434159   SL0561S5 525MA LOG *268TFR 194994617266
SL0561S5 180MA LOG *288E6U 197590401475   SL0561S5 550MA LIN *254S6P 193047604260
SL0561S5 200MA LIN *268TC7 194994616573   SL0561S5 550MA LIN 10.0MIN *268TFS 194994617259
SL0561S5 200MA LIN 10.0MIN *268TC8 194994616566   SL0561S5 550MA LOG *268TFU 194994617327
SL0561S5 200MA LOG *268TC9 194994616580   SL0561S5 571MA LOG *2625GH 193048518177
SL0561S5 225MA LIN *268TCA 194994616597   SL0561S5 575MA LIN *268TFW 194994617341
SL0561S5 225MA LIN 10.0MIN *268TCC 194994616610   SL0561S5 575MA LIN 10.0MIN *268TFY 194994617303
SL0561S5 225MA LOG *268TCE 194994616603   SL0561S5 575MA LOG *268TG0 194994617310
SL0561S5 250MA LIN *268TCF 194994616627   SL0561S5 580MA LIN *279W15 196183250292
SL0561S5 250MA LIN 10.0MIN *268TCG 194994616634   SL0561S5 592MA LIN *279W18 196183250339
SL0561S5 250MA LOG *267CCK 194994262282   SL0561S5 600MA LIN *268TFT 194994617273
SL0561S5 275MA LIN *268TCH 194994616641   SL0561S5 600MA LIN 10.0MIN *268TFV 194994617334
SL0561S5 275MA LIN 10.0MIN *268TCJ 194994616665   SL0561S5 600MA LOG *268TFX 194994617297
SL0561S5 275MA LOG *268TCK 194994616658   SL0561S5 642MA LIN *279W12 196183250230
SL0561S5 300MA LIN *268TEN 194994616894   SL0561S5 650MA LIN *268TG1 194994617358
SL0561S5 300MA LIN 10.0MIN *268TER 194994616986   SL0561S5 650MA LIN 10.0MIN *268TG2 194994617372
SL0561S5 300MA LOG *268TES 194994616993   SL0561S5 650MA LOG *268TG6 194994617389
SL0561S5 315MA LOG *278FRS 196182901799   SL0561S5 700MA LIN *2757V5 196182138225
SL0561S5 325MA LIN *268TEW 194994617068   SL0561S5 700MA LIN 1.0MIN *275CTH 196182168901
SL0561S5 325MA LIN 10.0MIN *268TF0 194994617013   SL0561S5 700MA LIN 5.0MIN *274C6R 194995935321
SL0561S5 325MA LOG *268TF3 194994617020   SL0561S5 700MA LOG *264TS2 193048769685
SL0561S5 350MA LIN *268TF5 194994617099   SL0561S5 700MA LOG 0.5MIN *2605MM 193048315530
SL0561S5 350MA LIN *268TF5 194994617099   SL0561S5 725MA LOG *279N0A 196183191946
SL0561S5 350MA LIN 10.0MIN *268TF7 194994617112   SL0561S5 775MA LIN *285EW5 197589704457
SL0561S5 350MA LOG *261G7R 191723438222   SL0561S5 780MA LOG *2800NT 196183279484
SL0561S5 375MA LIN *268TFE 194994617174   SL0561S5 800MA LIN *291NH9 198934247186
SL0561S5 375MA LIN 10.0MIN *268TFG 194994617181   SL0561S5 840MA LIN *279W0V 196183250209
SL0561S5 375MA LOG *268TEE 194994616863   SL0561S5 840MA LOG *276YJE 196182546822
SL0561S5 400MA LIN *268TEH 194994616917   SL0561S5 875MA LIN *2655TV 193048820393
SL0561S5 400MA LIN 10.0MIN *268TEL 194994616955   SL0561S5 875MA LOG *273UKX 194995826681
SL0561S5 400MA LOG *268TEM 194994616931   SL0561S5 900MA LOG *267CCG 194994262305
SL0561S5 425MA LIN *268TEP 194994616900
SL0561S5 425MA LIN 10.0MIN *268TET 194994617006
View AllClose

Additional Information

Our Part No.:
BS46-SL561S1
Manufacturer Part No.:
SL0561S5
Brand:
Acuity eldoLED SOLOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
50W
Max Output Current:
1400mA
Output Current Programmable Range:
150-1400mA
Max Output Voltage:
55V
Dimming:
Analog (0-10V)
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
4.65" L x 3.0" W x 1.2" H
UL Class:
Class 2
Features:
Compact Case, Side Feet Mount
Alternative Keywords:
SL0561S1, SL0561S2, SL0561S3, SL0561S4, SL0561S
Warranty:
Manufacturer's
Case Size:
10
