Description
SOLOdrive 563/A Programmable Constant Current LED Driver, 50W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, 2-55V Output, DALI-2 Dimming 0.1%-100% Dim-to-Dark, Side Feed w/ Plastic Cover Feet Mounting

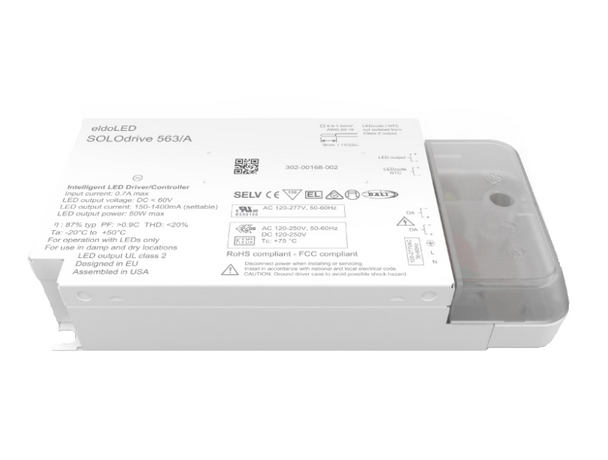

eldoLED SOLOdrive 563/A 50W LED Driver
SOLOdrive, 50W, DALI-2, 1 control channel, constant current, 1 x 55V output, side feed, square metal case/plastic lead cover
Programmable Options:
- Output Current: 150-1400mA in 1mA increments
- Dimming Curve: LIN linear, LOG logarithmic
- Minimum Dimming Level: 0.1% (factory default) in 0.1% increments
If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.
For example 600MA LIN is what we will need to program your driver prior to shipping.
Spec Sheets
Additional Information
Our Part No.: |
BS46-SOLOdrive 563/A |
Manufacturer Part No.: |
SL0563A5 |
Brand: |
Acuity eldoLED SOLOdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
50W |
Max Output Current: |
1400mA |
Output Current Programmable Range: |
150-1400mA |
Max Output Voltage: |
55V |
Dimming: |
DALI |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
6" L x 3" W x 1.18" H |
UL Class: |
Class 2 |
Features: |
Square Metal Case, Side Terminal Connector with Plastic Cover |
Alternative Keywords: |
SL0563A4, SL0563A3, SL0563A2, SL0563A1, SL0563A |
Warranty: |
Manufacturer's |
Case Size: |
10 |
