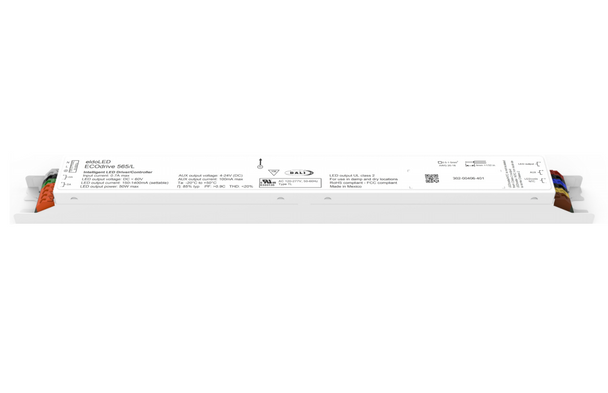

565/L ECOdrive (EC0565L4) eldoLED Programmable Constant Current LED Driver - 50W DALI-2 Dimming

(No reviews yet) Write a Review
SKU:
BS46-EC0565L4
MPN:
EC0565L4
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off
  • 565/L ECOdrive (EC0565L4) eldoLED Programmable Constant Current LED Driver - 50W DALI-2 Dimming
  • 565/L ECOdrive (EC0565L4) eldoLED - Output Specifications
  • 565/L ECOdrive (EC0565L4) eldoLED - Control
  • 565/L ECOdrive (EC0565L4) eldoLED - Dimensions
  • 565/L ECOdrive (EC0565L4) eldoLED - Terminal Connections
  • eldoLED Form Factor
  • 565/L ECOdrive (EC0565L4) eldoLED - Program Code
MSRP: $120.00
Now: $89.95
Was: $120.00
— You save $30.05

Description


ECOdrive 565/L Programmable Constant Current LED Driver, 50W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-1400mA, Single 2-55V Output, Dali-2 Dimming 1%-100%, Aux Power Port

eldoLED ECOdrive 565/L 50W LED Driver

ECOdrive, 50W, DALI-2 + AUX, 1 control channel, constant current, 1x 55V output, side feed, long metal

Programmable Options:

  • Output Current: 150-1400mA in 1mA increments
  • Dimming Curve: LIN linear, LOG logarithmic
  • Minimum Dimming Level: 1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.

Common Product Programming Configurations

Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
EC0565L2 350MA LOG *236P18 889804637212   EC0565L4 350MA LIN 16VAUX ON *2723KW 194995418411
EC0565L2 650MA LIN *262PMH 191723714715   EC0565L4 350MA LOG 16VAUX ON *258NYT 193048124279
EC0565L2 875MA LIN *241L0F 190887363654   EC0565L4 350MA LOG 24VAUX ON *2511MK 191848501528
EC0565L2 925MA LOG *251GWR 191848631973   EC0565L4 650MA LIN 16VAUX ON *289GYR 197590676507
EC0565L3 1000MA LIN *26226J 193048491470   EC0565L4 675MA LIN 16VAUX ON *289JEF 197590689323
EC0565L3 1025MA LIN *256XSW 193047914048   EC0565L4 700MA LIN 16VAUX ON *278F2L 196182896118
EC0565L3 1050MA LIN *25304W 193047225687   EC0565L4 825MA LIN 16VAUX ON *270ASH 194994991410
EC0565L3 1050MA LOG *2771G1 196182562273   EC0565L5 1000MA LIN 18VAUX ON *268W52 194994639916
EC0565L3 1060MA LIN *2879HE 197590151080   EC0565L5 1025MA LIN 18VAUX ON *268W53 194994639923
EC0565L3 1100MA LIN *268TXH 194994621225   EC0565L5 1050MA LIN 18VAUX ON *268W56 194994639947
EC0565L3 1125MA LOG *254YJE 193047647014   EC0565L5 1075MA LIN 18VAUX ON *273FWR 194995734443
EC0565L3 1150MA LIN *26760H 194994220732   EC0565L5 1150MA LIN 18VAUX ON *268W57 194994639954
EC0565L3 1150MA LOG *273TSL 194995820474   EC0565L5 1175MA LIN 18VAUX ON *268W5A 194994639992
EC0565L3 1175MA LIN *2668WW 193048974348   EC0565L5 1200MA LIN 18VAUX ON *268W5C 194994639978
EC0565L3 1200MA LIN *252M1N 193047098892   EC0565L5 1200MA LOG 18VAUX ON *268W5E 194994640035
EC0565L3 1200MA LOG *2547SE 193047497008   EC0565L5 1250MA LIN 18VAUX ON *268W5F 194994640042
EC0565L3 1275MA LIN *26080G 193048334579   EC0565L5 1275MA LIN 18VAUX ON *268W5H 194994640011
EC0565L3 1300MA LIN *2543L2 193047465724   EC0565L5 1300MA LOG 18VAUX ON *268W5K 194994640066
EC0565L3 1350MA LIN *2661LE 193048915426   EC0565L5 1325MA LIN 18VAUX ON *268W5N 194994640110
EC0565L3 1400MA LOG *254VC1 193047623117   EC0565L5 1350MA LIN 18VAUX ON *268W5R 194994640097
EC0565L3 300MA LOG *285Y4T 197589836608   EC0565L5 1400MA LIN 10.0MIN 16VAUX ON *277X28 196182780943
EC0565L3 350MA LIN *2553TP 193047679183   EC0565L5 1400MA LIN 18VAUX ON *268W5S 194994640127
EC0565L3 350MA LOG *249WH9 191848063644   EC0565L5 1400MA LOG 18VAUX ON *268W5T 194994640141
EC0565L3 450MA LOG *280GER 196183385697   EC0565L5 350MA LIN 18VAUX ON *268W4F 194994639701
EC0565L3 500MA LOG *280KSN 196183413086   EC0565L5 350MA LOG 16VAUX ON *266U13 194994129080
EC0565L3 600MA LIN *253XFX 193047426190   EC0565L5 350MA LOG 18VAUX ON *268W4A 194994639725
EC0565L3 600MA LOG *26559T 193048816020   EC0565L5 375MA LIN 16VAUX ON *275N2C 196182233890
EC0565L3 650MA LIN *2785LP 196182837357   EC0565L5 475MA LOG 16VAUX ON *284J7J 197589498349
EC0565L3 670MA LIN *254LRR 193047570480   EC0565L5 575MA LIN 16VAUX ON *272LUX 194995541423
EC0565L3 675MA LIN *266FHS 194994033394   EC0565L5 600MA LOG 18VAUX ON *268W4G 194994639749
EC0565L3 700MA LIN *253XFU 193047426169   EC0565L5 625MA LIN 16VAUX ON *274FFA 194995951826
EC0565L3 700MA LOG *2628AA 193048541359   EC0565L5 650MA LIN 16VAUX ON *273C5T 194995712151
EC0565L3 725MA LIN *277S25 196182739415   EC0565L5 675MA LIN 18VAUX ON *268W4J 194994639732
EC0565L3 750MA LIN *2668EA 193048969825   EC0565L5 694MA LIN 18VAUX ON *289TKL 197590763238
EC0565L3 775MA LIN *2568WF 193047859714   EC0565L5 700MA LIN 16VAUX ON *272LUY 194995541409
EC0565L3 800MA LIN *268C1Y 194994505389   EC0565L5 700MA LOG 18VAUX ON *268W4K 194994639756
EC0565L3 800MA LOG *280EH7 196183369932   EC0565L5 750MA LIN 18VAUX ON *268W4M 194994639770
EC0565L3 825MA LIN *256XUS 193047914079   EC0565L5 774MA LIN 16VAUX ON *288CCE 197590394654
EC0565L3 850MA LIN *2668CY 193048969702   EC0565L5 775MA LIN 16VAUX ON *272LUU 194995541393
EC0565L3 850MA LOG *2808JK 196183337092   EC0565L5 775MA LIN 18VAUX ON *268W4N 194994639800
EC0565L3 875MA LIN *266N5P 194994088035   EC0565L5 790MA LIN 16VAUX ON *2884F8 197590342938
EC0565L3 900MA LIN *2540MR 193047443746   EC0565L5 825MA LIN 18VAUX ON *268W4R 194994639794
EC0565L3 900MA LOG *2629K5 193048551488   EC0565L5 850MA LIN 18VAUX ON *268W4U 194994639848
EC0565L3 925MA LIN *255E0U 193047741842   EC0565L5 862MA LIN 18VAUX ON *289TKW 197590763351
EC0565L3 925MA LOG *273TSK 194995820511   EC0565L5 875MA LIN 18VAUX ON *268W4V 194994639824
EC0565L3 950MA LIN *2668E6 193048969771   EC0565L5 900MA LIN 16VAUX ON *272LUV 194995541386
EC0565L4 1050MA LOG 16VAUX ON *2688AP 194994483021   EC0565L5 900MA LIN 18VAUX ON *268W4W 194994639831
EC0565L4 1200MA LOG 16VAUX ON *269R6U 194994844570   EC0565L5 900MA LOG 18VAUX ON *268W4X 194994639879
EC0565L4 1300MA LOG 16VAUX ON *27879G 196182849435   EC0565L5 950MA LIN 18VAUX ON *268W51 194994639909
        EC0565L5 975MA LIN 18VAUX ON *291AV3 198934159649
View AllClose

Additional Information

Our Part No.:
BS46-EC0565L4
Manufacturer Part No.:
EC0565L4
Brand:
Acuity eldoLED ECOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
50W
Max Output Current:
1400mA
Output Current Programmable Range:
150-1400mA
Max Output Voltage:
55V
Dimming:
DALI
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
12.6" L x 1.18" W x 1.02" H
UL Class:
Class 2
Features:
Linear Case, Terminal Connections, Auxiliary Port
Alternative Keywords:
EC0565L3, EC0565L2, EC0565L1, EC0565L
Warranty:
Manufacturer's
Case Size:
10
