565/L eldoLED ECOdrive Constant Current Programmable LED Driver - 50W Dimmable

(No reviews yet) Write a Review
SKU:
BS46-EC0565L4
MPN:
EC0565L4
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 10 or above and get 5% off
  • 565/L eldoLED ECOdrive Constant Current Programmable LED Driver - 50W Dimmable
  • 565/L eldoLED ECOdrive - Specifications
  • 565/L eldoLED ECOdrive - Programming Configurator
  • 565/L eldoLED ECOdrive - Wiring
  • 565/L eldoLED ECOdrive - Dimensions
  • 565/L eldoLED ECOdrive - Dimming Characteristics
MSRP: $120.00
Now: $89.95
Was: $120.00
— You save $30.05

Description


ECOdrive 565/L Programmable Constant Current LED Driver, 50W Max Power Output, Universal 120-277V Input, DALI-2 Certified, Programmable Output Current 150-1400mA, 2-55Vdc Output, Smoothly Dims Down to 1%, Aux Power Port

eldoLED ECOdrive 50W Programmable LED Driver

ECOdrive (EC0565L2 EC0565L3 EC0565L3-BIS EC0565L4 EC0565L5), 50W, DALI-2 + AUX, 1 control channel, constant current, 1x 55V output, side feed, long metal

Features

  • Max Power Output 50W
  • Programmable Output Current 150-1400mA
  • Dimming Curve LOG Logarithmic (default), LIN Linear
  • Dimming Range 100%-1% (default)
  • Auxiliary Output 4-24V (16V ON default)
  • Control Protocol: DALI-2 Device Type 6, LEDcode2
  • NTC interface for robust thermal management
  • Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
  • CA Title 24

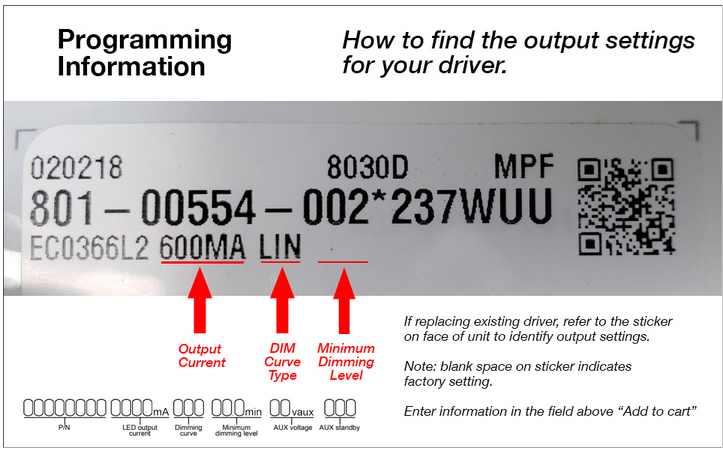

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.

Common Product Programming Configurations

Model Program CI Code   Model Program CI Code   Model Program CI Code   Model Program CI Code
EC0565L2 350MA LOG *236P18   EC0565L3 725MA LIN *277S25   EC0565L5 1075MA LIN 18VAUX ON *273FWR   EC0565L5 850MA LIN 18VAUX ON *268W4U
EC0565L2 650MA LIN *262PMH   EC0565L3 750MA LIN *2668EA   EC0565L5 1150MA LIN 18VAUX ON *268W57   EC0565L5 862MA LIN 18VAUX ON *289TKW
EC0565L2 875MA LIN *241L0F   EC0565L3 775MA LIN *2568WF   EC0565L5 1175MA LIN 18VAUX ON *268W5A   EC0565L5 875MA LIN 18VAUX ON *268W4V
EC0565L2 925MA LOG *251GWR   EC0565L3 800MA LIN *268C1Y   EC0565L5 1200MA LIN 18VAUX ON *268W5C   EC0565L5 900MA LIN 16VAUX ON *272LUV
EC0565L3 1000MA LIN *26226J   EC0565L3 800MA LOG *280EH7   EC0565L5 1200MA LOG 18VAUX ON *268W5E   EC0565L5 900MA LIN 18VAUX ON *268W4W
EC0565L3 1025MA LIN *256XSW   EC0565L3 825MA LIN *256XUS   EC0565L5 1250MA LIN 18VAUX ON *268W5F   EC0565L5 900MA LOG 18VAUX ON *268W4X
EC0565L3 1050MA LIN *25304W   EC0565L3 850MA LIN *2668CY   EC0565L5 1275MA LIN 18VAUX ON *268W5H   EC0565L5 950MA LIN 18VAUX ON *268W51
EC0565L3 1050MA LOG *2771G1   EC0565L3 850MA LOG *2808JK   EC0565L5 1300MA LOG 18VAUX ON *268W5K   EC0565L5 975MA LIN 18VAUX ON *291AV3
EC0565L3 1060MA LIN *2879HE   EC0565L3 875MA LIN *266N5P   EC0565L5 1325MA LIN 18VAUX ON *268W5N   EC0565L5-VLC 774MA LIN 16VAUX ON *287WW3
EC0565L3 1100MA LIN *268TXH   EC0565L3 900MA LIN *2540MR   EC0565L5 1350MA LIN 18VAUX ON *268W5R   EC0565L5-VLC 775MA LIN 16VAUX ON *287WW0
EC0565L3 1125MA LOG *254YJE   EC0565L3 900MA LOG *2629K5   EC0565L5 1400MA LIN 10.0MIN 16VAUX ON *277X28   EC0565L5-VLC 789MA LIN 16VAUX ON *292N7J
EC0565L3 1150MA LIN *26760H   EC0565L3 925MA LIN *255E0U   EC0565L5 1400MA LIN 18VAUX ON *268W5S   EC0565L5-VLC 790MA LIN 16VAUX ON *292N7H
EC0565L3 1150MA LOG *273TSL   EC0565L3 925MA LOG *273TSK   EC0565L5 1400MA LOG 18VAUX ON *268W5T   EC0565U2 1050MA LOG *254R79
EC0565L3 1175MA LIN *2668WW   EC0565L3 950MA LIN *2668E6   EC0565L5 350MA LIN 18VAUX ON *268W4F   EC0565U2 1150MA LOG *254R7A
EC0565L3 1200MA LIN *252M1N   EC0565L3-BIS 1000MA LOG *278H16   EC0565L5 350MA LOG 16VAUX ON *266U13   EC0565U2 1275MA LOG *288GNL
EC0565L3 1200MA LOG *2547SE   EC0565L3-BIS 350MA LOG *258EVH   EC0565L5 350MA LOG 18VAUX ON *268W4A   EC0565U2 1350MA LOG *2547PT
EC0565L3 1275MA LIN *26080G   EC0565L4 1050MA LOG 16VAUX ON *2688AP   EC0565L5 375MA LIN 16VAUX ON *275N2C   EC0565U2 1400MA LOG *2547R1
EC0565L3 1300MA LIN *2543L2   EC0565L4 1200MA LOG 16VAUX ON *269R6U   EC0565L5 475MA LOG 16VAUX ON *284J7J   EC0565U2 350MA LOG *263XU3
EC0565L3 1350MA LIN *2661LE   EC0565L4 1300MA LOG 16VAUX ON *27879G   EC0565L5 575MA LIN 16VAUX ON *272LUX   EC0565U2 400MA LOG *284YEA
EC0565L3 1400MA LOG *254VC1   EC0565L4 350MA LIN 16VAUX ON *2723KW   EC0565L5 600MA LOG 18VAUX ON *268W4G   EC0565U2 430MA LOG *280EGV
EC0565L3 300MA LOG *285Y4T   EC0565L4 350MA LOG 16VAUX ON *258NYT   EC0565L5 625MA LIN 16VAUX ON *274FFA   EC0565U2 475MA LOG *284YCS
EC0565L3 350MA LIN *2553TP   EC0565L4 350MA LOG 24VAUX ON *2511MK   EC0565L5 650MA LIN 16VAUX ON *273C5T   EC0565U2 525MA LOG *284YCG
EC0565L3 350MA LOG *249WH9   EC0565L4 650MA LIN 16VAUX ON *289GYR   EC0565L5 675MA LIN 18VAUX ON *268W4J   EC0565U2 550MA LOG *284YC8
EC0565L3 450MA LOG *280GER   EC0565L4 675MA LIN 16VAUX ON *289JEF   EC0565L5 694MA LIN 18VAUX ON *289TKL   EC0565U2 600MA LOG *2884GE
EC0565L3 500MA LOG *280KSN   EC0565L4 700MA LIN 16VAUX ON *278F2L   EC0565L5 700MA LIN 16VAUX ON *272LUY   EC0565U2 650MA LOG *284YC2
EC0565L3 600MA LIN *253XFX   EC0565L4 825MA LIN 16VAUX ON *270ASH   EC0565L5 700MA LOG 18VAUX ON *268W4K   EC0565U2 700MA LOG *2640MU
EC0565L3 600MA LOG *26559T   EC0565L4-B-NLIGHTAIR 400MA LIN *2572YN   EC0565L5 750MA LIN 18VAUX ON *268W4M   EC0565U2 832MA LOG *2656WT
EC0565L3 650MA LIN *2785LP   EC0565L4-B-VLC 924MA LIN 16VAUX ON *25613C   EC0565L5 774MA LIN 16VAUX ON *288CCE   EC0565U2 850MA LOG *284YAX
EC0565L3 670MA LIN *254LRR   EC0565L4-B-VLC 925MA LIN 16VAUX ON *256135   EC0565L5 775MA LIN 16VAUX ON *272LUU   EC0565U2 875MA LOG *266G78
EC0565L3 675MA LIN *266FHS   EC0565L5 1000MA LIN 18VAUX ON *268W52   EC0565L5 775MA LIN 18VAUX ON *268W4N   EC0565U2 900MA LOG *279T98
EC0565L3 700MA LIN *253XFU   EC0565L5 1025MA LIN 18VAUX ON *268W53   EC0565L5 790MA LIN 16VAUX ON *2884F8   EC0565U2 950MA LOG *2654HT
EC0565L3 700MA LOG *2628AA   EC0565L5 1050MA LIN 18VAUX ON *268W56   EC0565L5 825MA LIN 18VAUX ON *268W4R
View AllClose

Additional Information

Our Part No.:
BS46-EC0565L4
Manufacturer Part No.:
EC0565L2, EC0565L3, EC0565L3-BIS, EC0565L4, EC0565L5
Brand:
Acuity eldoLED ECOdrive
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
50W
Max Output Current:
1400mA
Max Output Voltage:
55V
Dimming:
Dimmable
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
12.6" L x 1.18" W x 1.04" H
UL Class:
Class 2
Features:
Linear Case, Terminal Connections
Alternative Keywords:
ECO565L2, ECO565L3, ECO565L3-BIS, ECO565L4, ECO565L5
Warranty:
Manufacturer's
Case Size:
10
