565/U eldoLED ECOdrive Constant Current Programmable LED Driver - 50W Long-Case DALI-2

ECOdrive 565/U Programmable Constant Current LED Driver, 50W Max Power Output, Universal 120-277V Input, DALI-2 Certified, Programmable Output Current 150-1400mA, 2-55Vdc Output, Smoothly Dims Down to 1%, Aux Power Port

eldoLED ECOdrive 50W Programmable Constant Current LED Driver

ECOdrive (EC0565U2) 50W, DALI-2, 1 control channel, constant current, 1 x 55V output, side feed, long metal

Features

• Max Power Output 50W
• Programmable Output Current 150-1400mA
• Dimming Curve LOG Logarithmic (default), LIN Linear
• Dimming Range 100%-1% (default)
• Auxiliary Output 15.5-25V
• Control Protocol: DALI-2 Device Type 6, LEDcode2
• NTC interface for robust thermal management
• Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
• CA Title 24

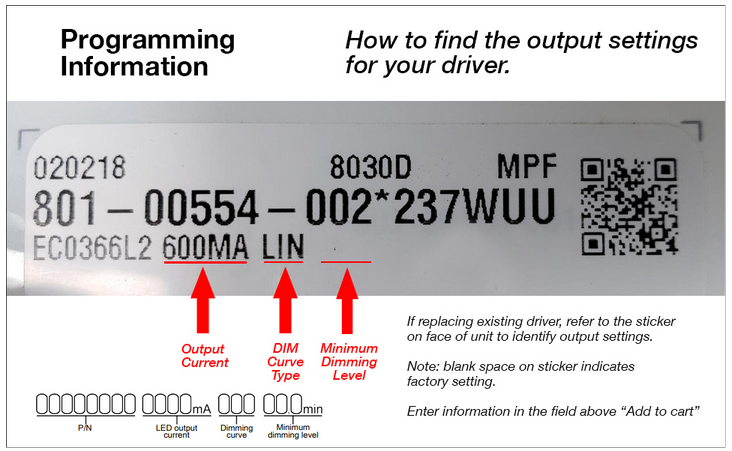

If you do not enter the program code above before Add to Cart , we will contact after ordering to get the six digit alpha-numeric following the * located on a sticker on the driver so we can program it to this required spec. We are not able to ship with out the program code.

For example *237WUU is what we will need to program your driver prior to shipping.
