Description
ECOdrive 567/L Constant Current LED Driver, 50W Max Power Output, LEDcode2 Compatible, Programmable Fixed 150-1400mA Output Current, 2-55Vdc Output, Analog 0-10V Dimming 1%-100%
eldoLED ECOdrive 50W Programmable LED Driver
ECOdrive (EC0568L3 EC0568L4 EC0568L4), 50W, LEDcode2 + AUX, 1 control channel, constant current, 1x 55V output, side feed, long metal
Features
- Max Power Output 50W
- Programmable Output Current 150-1400mA
- Dimming Curve LOG Logarithmic (default), LIN Linear
- Dimming Range 100%-1% (default)
- Auxiliary Output : None
- Control Protocol: LEDcode2
- NTC interface for robust thermal management
- Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
- CA Title 24

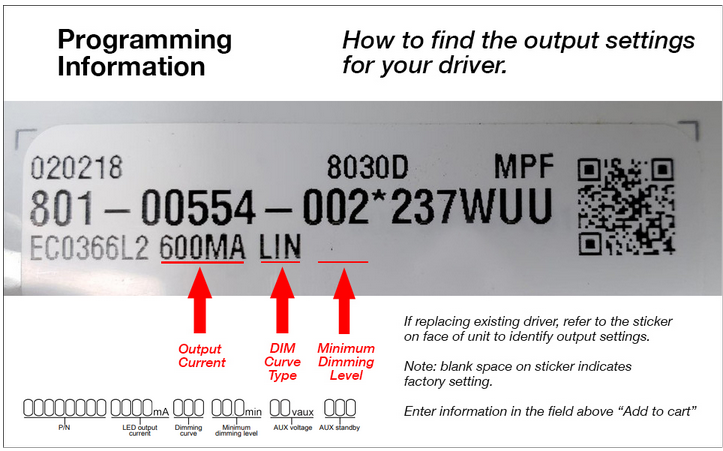

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.
For example 600MA LIN is what we will need to program your driver prior to shipping.
Common Product Programming Configurations
Spec Sheets
Additional Information
Our Part No.: |
BS46-EC0567/L |
Manufacturer Part No.: |
EC0567L4 |
Brand: |
Acuity eldoLED ECOdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
50W |
Max Output Current: |
1400mA |
Max Output Voltage: |
55V |
Dimming: |
Dimmable |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
12.6" L x 1.2" W x 1.04" H |
UL Class: |
Class 2 |
Features: |
Linear Case, Terminal Connections, No Aux Port |
Alternative Keywords: |
ECO567L4 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
