Description

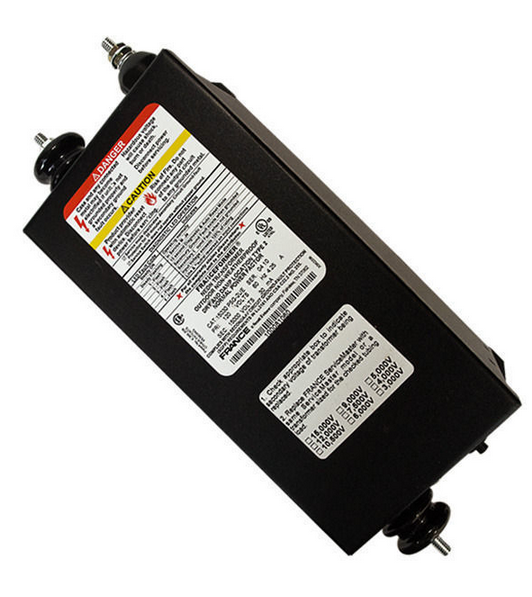

FRANCE Neon Transformer, 120V Inpu, 9KV 60mA, Normal Power Factor
FRANCE Neon Indoor/Outdoor Transformer
Standard outdoor non-weatherproof neon transformer, UL 2161 compliant with patented bypass feature and LED diagnostic indicator light for easy troubleshooting of ground faults and primary wiring problems. SCGFP can be overridden for up to 30 minutes. Several can be used in flashing and dimming applications.
- Primary Wiring Requirements of a Standard Transformer - with the added safety of Secondary Ground Fault Protection.
- Bypass Feature - For easy troubleshooting of ground faults and primary wiring problems. Overrides the SCGFP for up to 30 minutes.
- Diagnostic Circuits - A red LED indicates the reason for for a fault, allowing for quick, easy troubleshooting.
- Secondary Circuit Ground Fault Protection - (SCGFP) Disables unit upon detection of arcs to ground in compliance with UL2161 and NEC requirements.
- Input Voltage: 120 Output Voltage: 100 - 9,000
Spec Sheets
Additional Information
Our Part No: |
BS33-9060 P5G-2E |
Mfr Part #: |
9060 P5G-2E |
Brand: |
France |
Fixture Type: |
Neon |
Input Voltage: |
120 |
Rating: |
9KV 60MA 120V |
Number Of Lamps: |
1 |
Dimensions: |
11.25" L x 5.2" W x 4.9" H |
Features: |
LED indicator light |
Alternative Keywords: |
NT/9000, 9060P5G2E, 9060P5G2U120 |
Warranty: |
Manufacturer's |
Case Size: |
ea |
