Description

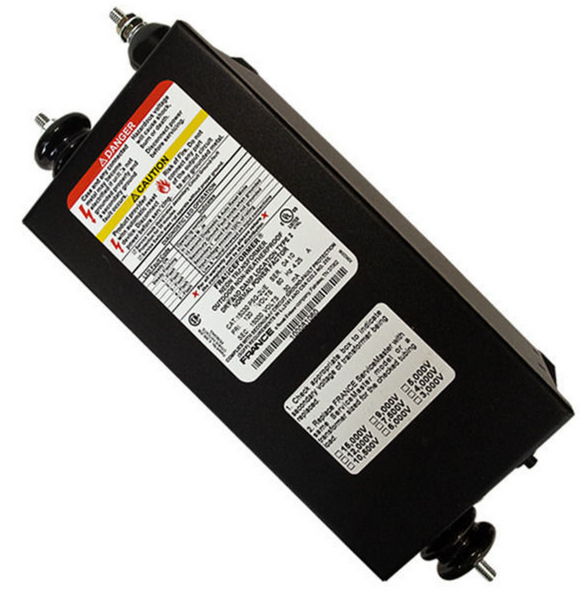

FRANCE 9060 P5G-2UE Neon Transformer, 120V Input, "U" Universal Self-adjusting to Replace 2kV-9KV 60mA Secondary, Primary 320VA, UL2161 listed, Normal Power Factor
FRANCE 9060 P5G-UE Universal Neon Indoor/Outdoor Transformer
The "U" in P5G-2UE denotes "Universal" self-adjusting functionality, providing more flexibility for repairs and installations compared to the standard P5G-2E
- Primary Wiring Requirements of a Standard Transformer - with the added safety of Secondary Ground Fault Protection.
- Secondary Circuit Ground Fault Protection: Unit is disabled upon detection of arcs to ground in compliance with UL2161, C22.2 No. 255 and NEC requirements.
- Bypass Feature - For easy troubleshooting of ground faults and primary wiring problems. Overrides the SCGFP for up to 30 minutes.
- Diagnostic Circuits - Red LED indicates the reason for for a fault, allowing for quick, easy troubleshooting.
Spec Sheets
Additional Information
Our Part No: |
BS33-France-38825 |
Mfr Part #: |
9060 P5G-2UE |
Manufacturer Material Code: |
38825 |
Brand: |
France |
Fixture Type: |
Neon |
Input Voltage: |
120 |
Rating: |
9KV 60MA 120V 320VA |
Dimensions: |
8.37" L x 3.70" W x 5.39" H |
Features: |
Features "U" universal, self-adjusting capabilities, allowing a single unit to replace multiple, different-voltage transformers (e.g., 9kV replaces 2kV-9kV) |
Warranty: |
Manufacturer's |
Alternative Keywords: |
9060P5G2UE |
Number Of Lamps: |
1 |
Case Size: |
ea |
