Description
NX Lighting (Hubbell) UL924 Emergency Lighting Control Unit, Automatic Load Control Relay (ALCR), Dual Input 120/277V (with or w/o 0-10V Dimming), power rating up to 16A, Plenum rated with 1/2" nipple

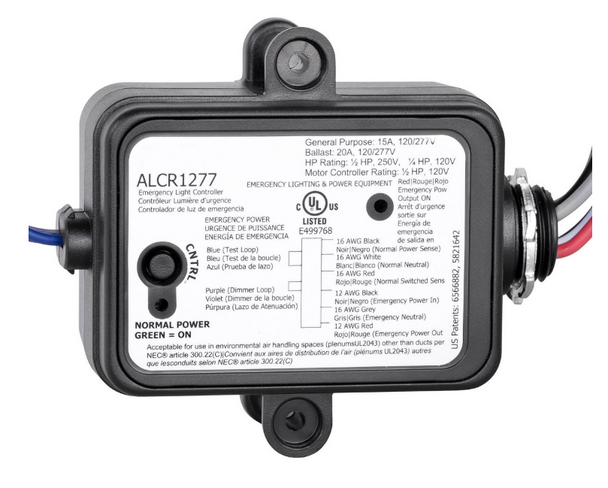

NX Lighting ALCR1277 (UL924) Automatic Control Relay
UL924, Emergency load control relay, with 0–10V dimming override, 120 – 277VAC
Features
- Automatically overrides emergency lights on upon loss of Normal Power circuit
- Meets NEC Article 700 requirements for emergency lighting
- Dual voltage, 120 or 277V operation
- Normally closed contacts for emergency lighting
- Normally open contacts for 0–10V dimming override
- Multi-color function LED
- Suitable for use in return air plenums
- CA Title 24 Compliant
Electrical
- General Purpose: 15A, 120/277V
- Ballast: 20A, 120/277V
- HP Rating: ½ HP, 250V, ¼ HP, 120V
- Motor Controller Rating: ½ HP, 120V
Spec SheetsAdditional Information
Our Part No: |
BSF-NX-ALCR1277 |
Mfr Part #: |
ALCR1277 |
Manufacturer Material Code: |
NA |
Fixture Type: |
Emergency |
Lighting Load Max: |
20A |
Input Voltage: |
120/277V (Dual) |
Dimensions: |
4.0" L x 3.4" W x 1.73" H with a 0.50” threaded nipple |
Features: |
Temperature Range (-40 to 149 F) |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Case Size: |
ea |
Alternative Keywords: |
UL924 AUTOMATIC LOAD RELAY |
