Description
Bodine Compact Case Emergency LED Driver, 6W Max Output Power, Universal 120-277V Input, 780 Lumens, 15-54V output, Plenum Rated Metal Test-Switch Indicator-Light Assembly, Stud or Feet Mount Options, CEC Title 20 Compliant, Batteries Included.

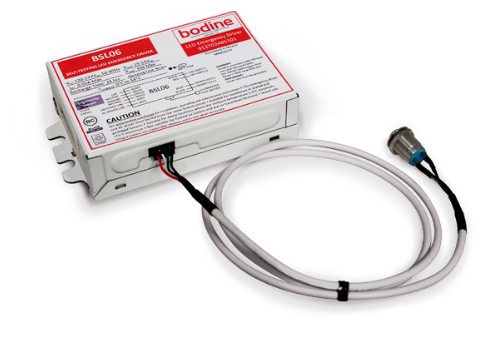

BODINE Compact 6W 780 Lumen Emergency LED Driver
The new Bodine 6W emergency LED driver is the first of its kind emergency solution in a compact metal housing, designed for space-limited LED applications and easily installs onto the junction box of a fixture, opposite of the normal LED driver.
Models J-box or Feet mount
- For Field or Factory Installation (Indoor and Damp)
- Automatic code-compliant testing
- Class 2 wiring
- Meets California Energy Commission Title 20 efficiency requirements
- Plenum Rated Metal Test Switch Assembly
- Maintenance-Free Li-ion Battery
- LED test switch and charging indicator light is provided
Versions Available:
- J-Box (Stud) Mount: BSL06M5UAK55BSI1 (913702485201)
- Feet Mount: BSL06M5UAK55LDI1 (913702485101)
Spec Sheets
Additional Information
Our Part No: |
BSF-BSL06M5 |
Mfr Part #: |
BSL06M5UAK55BSI1, BSL06M5UAK55LDI1 |
Manufacturer Material Code: |
913702485201, 913702485101 |
Fixture Type: |
Emergency |
Features: |
Bottom Stud or Feet Mount |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
6W |
Lumens: |
780LM |
Max Output Current: |
470mA |
Dimensions: |
4.21" (L) x 3.00" (W) x 1.18" (H); MC 4.59" |
CA Title 20 Compliant: |
Yes |
Product Data Sheet: |
See PDF Link Provided |
Replaces: |
BSL06M5UAK55BSI1, BSL06M5UAK55LDI1 |
Warranty: |
Manufacturer's |
