Description

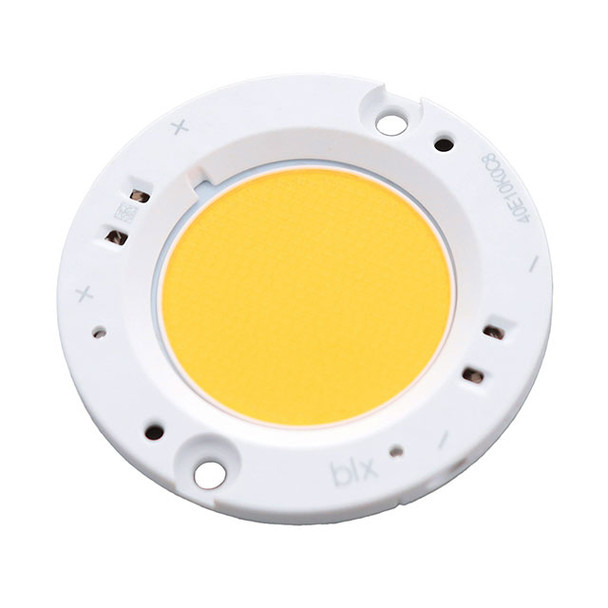

Bridgelux Vero SE 29 LED Array chip on board (CoB), 12991 lumen, 90 CRI min, 3000K Warm White Color Temperature, 3-Step MacAdam Ellipse
Bridgelux Vero SE 29 LED Array Chip on Board 12991 Lumen 3000K
Vero SE 29 Series 3000K 90 CRI min 12991 lm 66.7V 3 SDCM Warm White LED Array
Vero SE Series is a revolutionary light source system that integrates Bridgelux’s 8th generation COB technology with poke-in connectivity enabling solder-free installation
- Typical 150 lm/W typical
- Dual poke-in connectivity
- 49.20mm side-to-side, flat height of 3.60mm
- Viewing Angle: 120°
- Typical Drive Current: 1300mA
Spec Sheets
Additional Information
Our Part No: |
BSF-BLX-BXRC-40E10K0-C-83-SE |
Mfr Part #: |
BXRC-40E10K0-C-83-SE |
Brand: |
Bridgelux |
Product Marking: |
40E10K0-C-83-SE |
Fixture Type: |
LED |
Lumens: |
16474 |
Color Temperature: |
4000K |
Max Current: |
4750mA |
Features: |
Flat Lens |
Dimensions: |
49.20mm Dia x 3.60mm H |
CRI: |
80+ |
Dimming: |
Yes |
Viewing Angle: |
120° |
Warranty: |
Manufacturer's |
Step: |
1 |
