Description
Advance CertaDrive X-Series Constant Current LED Driver, Up to 12W Power Output, Input 120V-277V, Fixed Output Current Switch Select 250mA or 275mA, Output 24-42V, Dimmable 0-10V Analog 10%-100%, side entry

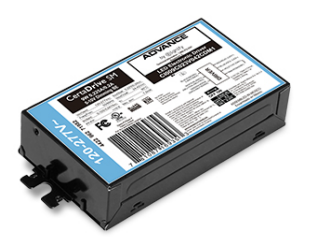

Advance CertaDrive 12W Dimmable LED Power Supply
100 - 277Vac, 12W, 250; 275mA, 24-42V, [0-10V], IP20 LED Driver
- Total Max Output Power: 12W
- Output Current 250mA or 275mA - Adjustable via Switch
- Input Voltage: 120-277 VAC
- Output Voltage Range: 24-42VDC
- UL Damp and Dry
- Dimmable 10%-100%, 0-10V Analog
- Class 2 Wiring
Spec Sheets
Additional Information
Our Part No.: |
BSF-CI012C028V042CDD1 |
Manufacturer Part No.: |
CI012C028V042CDD1 |
Manufacturer Material Code: |
929002767813 |
Brand: |
Signify Advance CertaDrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Field-Select |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
12W |
Max Output Current: |
250mA, 275mA |
Output Current Factory Setting: |
250mA, 275mA |
Max Output Voltage: |
42V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
4.8"(L) x 2.4"(W) x 0.98"(H) |
UL Class: |
Class 2 |
Features: |
Field Adjustable Fixed Output Current |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
18 |
