Description
Advance CertaDrive SM Point Constant Current LED Driver, 23W Max Power Output, Universal 120V-277V Input, Fixed Field-Select 500mA or 550mA Output Current, Output 24-42V, Dimmable 0-10V Analog 10%-100%, Bottom-Entry Stud Mount

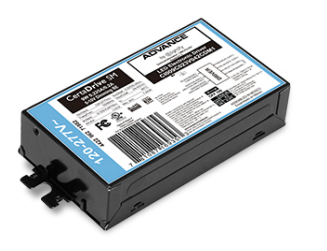

Advance CertaDrive SM 23W 500/550mA Constant Current LED Driver - Bottom-Studs
100 - 277Vac, 23W, 500/550mA, 24-42V, [0-10V], IP20 LED Driver, Bottom-Entry Stud-Mount
- Total Max Output Power: 19W
- Constant Output Current 400mA or 450mA - Adjustable via Switch
- Input Voltage: 120-277 VAC
- Output Voltage Range: 24-42VDC
- UL Damp and Dry
- Dimmable 10%-100%, 0-10V Analog
- Class 2 Wiring
- Bottom-Entry Stud-Mounting
Spec Sheets
Additional Information
Our Part No.: |
BSF-CI023C055V042CDM1 |
Manufacturer Part No.: |
CI023C055V042CDM1 |
Manufacturer Material Code: |
929002750613 |
Brand: |
Signify Advance CertaDrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Field-Select |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
23W |
Max Output Current: |
500mA, 550mA |
Output Current Factory Setting: |
500mA, 550mA |
Max Output Voltage: |
42V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
4.8"(L) x 2.4"(W) x 0.98"(H) |
UL Class: |
Class 2 |
Features: |
Field Adjustable Fixed Output Current, Bottom Entry Stud Mount |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
16 |
