Description
Advance CertaDrive SM Point Constant Current LED Driver, 50W Max Power Output, Universal 120V-277V Input, Fixed Field-Select 1100mA or 1200mA Output Current, 24-42V Output, Analog 0-10V Dimmable 1%-100%, Side Entry Feet Mount

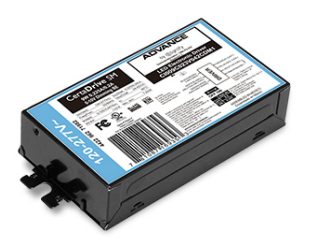

Advance CertaDrive SM 50W 1100mA/1200mA Constant Current LED Driver - Side-Entry
100 - 277Vac, 50W, 1100/1200mA, 24-42V, [0-10V], Side Entry Feet Mount
- Total Max Output Power: 50W
- Constant Output Current 1100mA or 1200mA - Adjustable via DipSwitch
- Input Voltage: 120-277 VAC
- Output Voltage Range: 24-42VDC
- UL Damp and Dry
- Dimmable 1%-100%, 0-10V Analog
- Class 2 Wiring
- Side Entry Feet Mount
Spec Sheets
Additional Information
Our Part No.: |
BSF-CI050C120V042CDD1 |
Manufacturer Part No.: |
CI050C120V042CDD1 |
Manufacturer Material Code: |
929002751113 |
Brand: |
Signify Advance CertaDrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Field-Select |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
50W |
Max Output Current: |
1100mA, 1200mA |
Output Current Factory Setting: |
1100mA, 1200mA |
Max Output Voltage: |
42V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
4.8"(L) x 2.4"(W) x 0.98"(H) |
UL Class: |
Class 2 |
Features: |
Field Adjustable Fixed Output Current, Side Entry Feet Mount |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
16 |
