Description

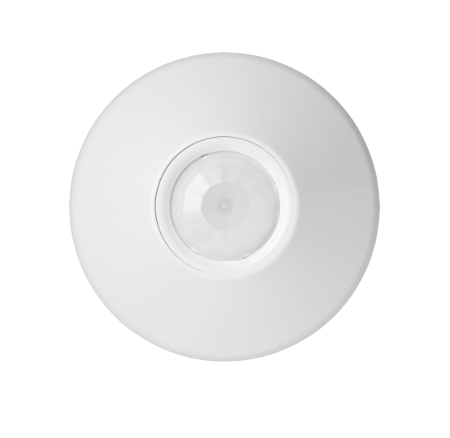

Sensor Switch CMR 10 Ceiling Motion Sensor, Input 120/277/220/230V, Passive Infrared (PIR), Large Motion 360° Extended Range, White Cover, Green Indicator Light
Sensor Switch CMR10 Ceiling Mount Occupancy Sensor - Extended Range
The CMR is a line voltage sensor that easily mounts directly to a ceiling. Lens options include large motion extended range and small motion standard range. These sensors are capable of covering an entire private office or small room by themselves.
Features
- PIR Occupancy Detection
- 360° Coverage
- Self-Contained Relay - No Power Pack needed
- Time Delay: 30 sec to 20 min
- No Minimum Load Requirements
- Push-Button Programmable
- Green LED Indicator
- 100 Hr. Lamp Burn-in Timer Mode
Spec Sheets
Additional Information
Our Part No: |
BSF-SS-184CH0 |
Mfr Part #: |
CMR 10 |
Manufacturer Material Code: |
*184CH0 |
Color: |
White |
Indicator Light: |
Green |
Detection Type: |
Passive Infrared (PIR) |
Input Voltage: |
120/277/220/230V |
Dimensions: |
4.55” Dia x 1.55"H |
Features: |
Large Motion 360°, Extended Range |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
ea |
