Universal Everline

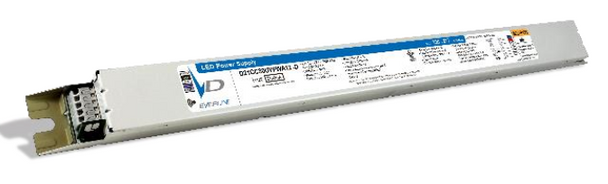

D21CC80UVPWA24-D Universal EVERLINE Programmable LED Driver - 80W 2100mA 24V-AUX

(No reviews yet) Write a Review
SKU:
BSF-D21CC80UVPWA24-D010C
UPC:
768386652007
MPN:
D21CC80UNPWA24-D010C
Availability:
DISCONTINUED - Shipping Manufacturer's Replacement - Use Link Below
Shipping:
Calculated at Checkout
  • D21CC80UNPWA24-D Universal EVERLINE LED Driver
  • D21CC80UNPWA24-D Universal EVERLINE LED Driver - Wiring
  • D21CC80UNPWA24-D Universal EVERLINE LED Driver - Dimensions
  • D21CC80UNPWA24-D Universal EVERLINE LED Driver - Operating Range
  • Dimmable
  • Universal Everline
MSRP: $90.00
$56.95
— You save $33.05

Out of stock

Description

Universal Everline D21CC80UVPWA24-D Constant Current LED Driver, 80W Max Power, programmable 100-2100mA (factory set 2100mA) fixed current output, 0-10V Dimming 1%-100%, auxiliary port (1.2W 50mA, 24Vdc), (-D) Linear Case Feet Mount

DISCONTINUED BY MANUFACTURER - Shipping Manufacturer's Candidate Replacement. Note - replacement does not have AUX Port. Please review and order here:  D21CC80UNVPW-C

Universal Everline 80W Constant Current Dimmable LED Driver

The EVERLINE PWA series of Constant Current Linear LED Drivers features wireless programming, auxiliary output power, dim to off (programmable) and configurable dimming curves.

  • Constant Current LED Driver
  • 0-10V Dimming to 1% standard or dim-to-off upon request.
  • Output Power 80W
  • Input Voltage: Universal 120-277V
  • Output Voltage: 5V to 38V @ 2.10 Amps; 15V to 56V @ 1.40 Amps
  • Max Output Current 630-2100mA
  • Start Temp. (Min) -40C (-40F)
  • UL Damp/Dry location rated
  • Class 2 rated
View AllClose

Additional Information

Our Part No.:
BS-D21CC80UNPWA24-D010C
Manufacturer Part No.:
D21CC80UNPWA24-D
Manufacturer Material Code:
D21CC80UNPWA24-D010C
Brand:
Universal Everline
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
80W
Max Output Current:
2100mA
Output Current Factory Setting:
2100mA
Output Current Common Custom Settings:
350mA, 500mA, 550mA, 700mA, 900mA, 1050mA, 1250mA
Max Output Voltage:
56V
Output Voltage Range:
15-56V
Dimming:
Analog (0-10V)
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
16.88"(L) x 1.70"(W) x 1.18"(H) Mounting Centers 16.28"
UL Class:
Class 2
Features:
Linear Case
Warranty:
Manufacturer's 5 Year
Case Size:
10
