Description
Magnitude Lighting Constant Voltage LED Driver, UL Listed, 40W Max Power, 120V Input, Fixed 24Vdc Output, Output Current up to 1750mA, Phase Dimmable 1%-100%, NEMA 3R Junction Box, 2 Knock-outs

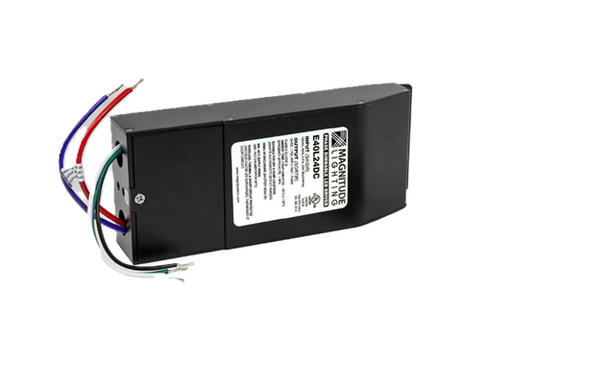

Magnitude 40W 24V Constant Voltage LED Power Supply - UL Listed
- Max 40W LED Power Supply
- Input Voltage: 120VAC, Output Voltage: 24VDC
- Current Output: up to 1.75A
- Dimming: phase-dimmable down to 1% with leading edge TRIAC dimmers
- IP67, Indoor/Outdoor NEMA 3R
- Class 2 power supply
- UL 8750 Listed
- Wiring compartment with two ½" knockouts, clamp connectors included
- E40L24DC-KO / E40L24DC - exact same unit
Spec SheetsVideos
View AllClose
Additional Information
Our Part No.: |
BSF-MAG-E40L24DC |
Manufacturer Part No.: |
E40L24DC |
Brand: |
Magnitude Lighting |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120V |
Max Output Power: |
40W |
Max Output Current: |
1750mA |
Max Output Voltage: |
24V |
Dimming: |
TRIAC, Phase |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
IP67, NEMA 3R |
Dimensions: |
6.77" L x 2.67" W x 1.26" H |
Features: |
UL Listed, Junction Box Enclosure, 1/2" Knock-Outs |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
8 |
