Description

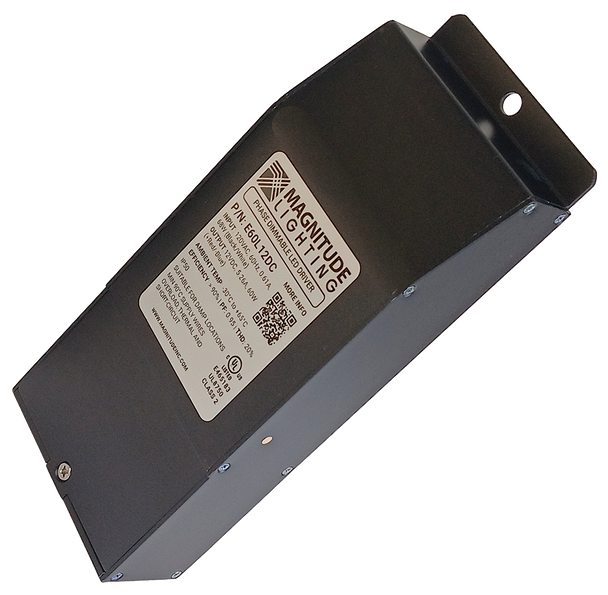

Magnitude Lighting Constant Voltage LED Driver, UL Listed, 60W Max Power, 120V Input, Fixed 12Vdc Output, Output Current up to 5000mA, Phase Dimmable 1%-100%, NEMA 3R Junction Box, 2 Knock-outs
Magnitude 60W 12V Constant Voltage LED Power Supply - UL Listed
- Max 60W LED Power Supply
- Input Voltage: 120VAC, Output Voltage: 12VDC
- Current Output: up to 5.0A
- Dimming: phase-dimmable down to 1% with leading edge TRIAC dimmers
- Indoor/Outdoor NEMA 3R
- Class 2 power supply
- UL 8750 Listed
- Wiring compartment with two ½" knockouts, clamp connectors included
- E60L12DC-KO / E60L12DC - exact same unit
Spec Sheets
Additional Information
Our Part No.: |
BSF-MAG-E60L12DC-KO |
Manufacturer Part No.: |
E60L12DC |
Brand: |
Magnitude Lighting |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage |
Input Voltage: |
120V |
Max Output Power: |
60W |
Max Output Current: |
5000mA |
Max Output Voltage: |
12V |
Dimming: |
TRIAC, Phase |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
IP67, NEMA 3R |
Dimensions: |
6.77" L x 2.67" W x 1.26" H |
Features: |
UL Listed, Junction Box Enclosure, 1/2" Knock-Outs |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
8 |
