Description
ECOdrive 22S-M1Z0D Programmable Constant Current LED Driver, 22W Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 150-950mA, 2-42V Output, DALI-2 and LEDcode2.1 Dimming 1%-100%, Side Feed with feet mount flanges

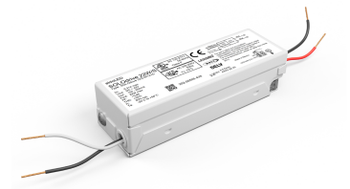

eldoLED ECOdrive 22S-M1Z0D 22W LED Driver
ECOdrive, 22W, 120-277V, DALI and LEDcode, 1 control channel, constant current, 1 x 42V output, side feed with flanges
Programmable Options:
- Output Current: 150-950mA in 1mA increments
- Dimming Curve: LIN linear, LOG logarithmic
- Minimum Dimming Level: 1% (factory default) in 0.1% increments
If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.
For example 600MA LIN is what we will need to program your driver prior to shipping.
Spec SheetsAdditional Information
Our Part No.: |
BS46-EC22S-M1Z0D1 |
Manufacturer Part No.: |
EC22S-M1Z0D1 |
Manufacturer Material Code: |
*269KJ9 |
Brand: |
Acuity eldoLED ECOdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
22W |
Max Output Current: |
950mA |
Output Current Factory Setting: |
350mA |
Output Current Programmable Range: |
150-950mA |
Output Current Common Custom Settings: |
150mA, 350mA, 500mA, 700mA, 900mA |
Max Output Voltage: |
42V |
Output Voltage Range: |
2-42V |
Dimming: |
LEDcode, DALI-2 |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
4.43" L x 1.26" W x 0.98" H; MC 4.11" |
Mounting: |
Side Feed w/ Flanges |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
25 |
