Description
Inventronics Constant Current LED Driver, 96W Max Power Output, High Voltage Input 277-480V, Programmable Fixed Output Current 900-1800mA (factory default 1050mA), 32-107Vdc Output Voltage, Dimmable 0-10V/PWM/Timer

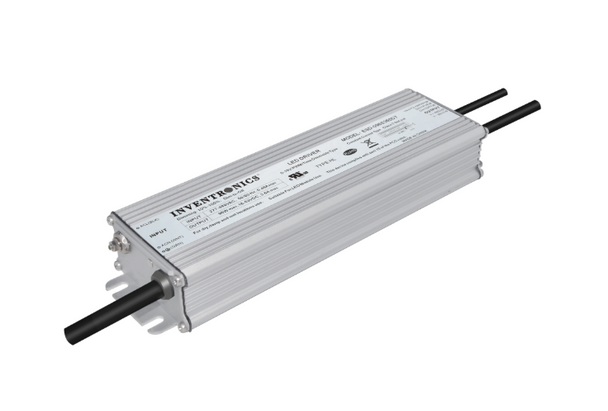

Inventronics 96W 1050mA High-Voltage Constant Current LED Driver
- Programmable, Enabling Hundreds of Configurations
- Max Output Power: 96W
- Full Power at Wide Output Current Range (Constant Power)
- Output Current Range at Full Power: 900-1800mA (factory set at 1050mA)
- Output Voltage Range: 37-107Vdc
- Input Voltage Range: 249-528 Vac or 352-500Vdc
- Dimming Controls: 0-10V/PWM/Timer Dimmable and Dim-to-Off
- High Level of Built-in Surge Protection: 6kV DM, 10kV CM
- IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
- 5 Year Warranty
Spec Sheets
Additional Information
Our Part No.: |
BS61-ESD-096S180DT |
Manufacturer Part No.: |
ESD-096S180DT |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
277-480V (High Voltage) |
Max Output Power: |
96W, 100W |
Max Output Current: |
1800mA |
Output Current Factory Setting: |
1050mA |
Output Current Programmable Range: |
900-1800mA |
Max Output Voltage: |
107V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
9.4" L x 2.66" W x 1.43" H |
UL Class: |
Class 2 |
Features: |
0-10V/PWM/Timer Dimmable (3 Timer Modes) |
Warranty: |
Manufacturer's |
Case Size: |
18 |
