Description
Inventronics ESD-240S150DT Programmable Constant Current LED Driver, 240W max power, 249-528V input, 1050-1500mA (factory set 1400mA) Output Current, 80-229Vdc output voltage, dimmable 0-10V analog and PWM

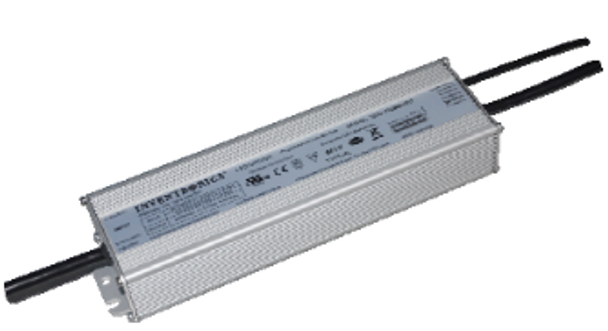

Inventronics 240W 1400mA Programmable Constant Current LED Driver
- Programmable, Enabling Hundreds of Configurations
- Output Current Range: 1050-1500mA (factory set at 1400mA)
- Input Voltage Range: 249-528 Vac
- Output Voltage Range: 22-61Vdc
- Dimming Controls: 0-10V/PWM/Timer Dimmable and Dim-to-Off
- High Level of Built-in Surge Protection: 6kV DM, 10kV CM
- IP67, UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
- 5 Year Warranty
Additional Information
Our Part No.: |
BS61-ESD-240S150DT |
Manufacturer Part No.: |
ESD-240S150DT |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
277-480V (High Voltage) |
Max Output Power: |
240W |
Max Output Current: |
1500mA |
Output Current Factory Setting: |
1400mA |
Output Current Programmable Range: |
1050-1500mA |
Max Output Voltage: |
229V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
10.32" L x 2.66" W x 1.57" H |
UL Class: |
Class 1 |
Features: |
Full Power at 70-100% Max Current (Constant Power) |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
12 |
