Description

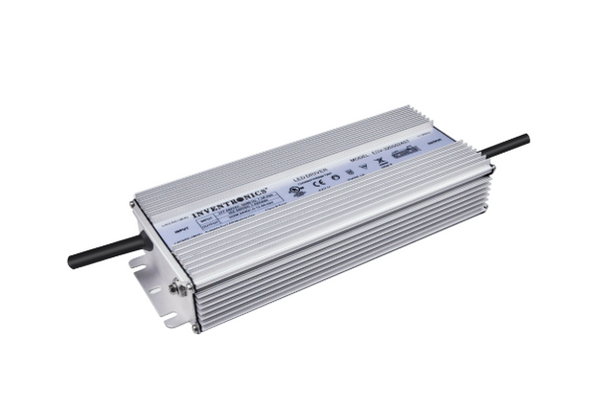

Inventronics Constant Voltage LED Driver, 320W Max Power Output, High-voltage 277V-480V Input, Fixed 24Vdc Output, up to 13400mA Output Current
Inventronics 320W 24V Constant Voltage LED Driver
- Total Power: 320 Watts
- Output Voltage: 24Vdc
- Input Voltage: 249-528 VAC
- Current Output up to 13400mA
- Waterproof (IP67) and UL Dry / Damp / Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
- Input Surge Protection: 6kV DM, 10kV CM
- High Efficiency
- -35°C to 70°C operation
- High Power Factor (0.99 Typical)
Spec SheetsAdditional Information
Our Part No.: |
BS61-ESV-320S024ST |
Manufacturer Part No.: |
ESV-320S024ST |
Brand: |
Inventronics |
Fixture Type: |
LED |
Product Data Sheet: |
See PDF Link Provided |
Driver Type: |
Constant-Voltage |
Input Voltage: |
277-480V (High Voltage) |
Max Output Power: |
320W |
Max Output Current: |
13400mA |
Max Output Voltage: |
24V |
Dimming: |
Non-Dimming |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
8.82" L x 3.86" W x 1.76" H |
UL Class: |
Class 2 |
Features: |
Chassis Mount |
Warranty: |
Manufacturer's |
Case Size: |
6 |
