Description

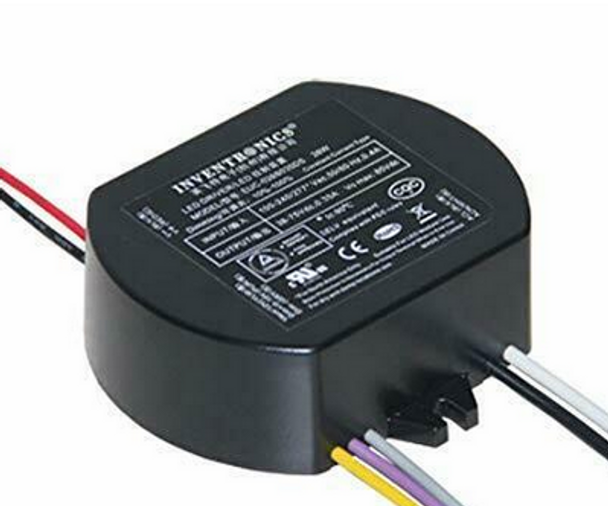

INVENTRONICS LED Driver, Constant Current, 0-10V Dimming, 26 Watt, 90-305V Input, 1400mA 10-19Vdc Output, Waterproof (IP66) and UL Damp Location
INVENTRONICS LED Drivers 26W 1400mA Constant Current
Every LED array or fixture requires a driver to provide efficient power. At BallastShop we offer a wide array drivers to meet your power output and dimming requirements of virtually any LED in the marketplace.
- Total Power: 26 Watts 1400mA
- Input Voltage: 90-305 VAC
- Waterproof (IP66) and UL Damp Location
- Class 2
- Efficiency 85%
- Operating temperature range: -40°C to 70°C
- Polycarbonate Housing
Additional Information
Our Part No.: |
BSF-EUC-026S140DS |
Manufacturer Part No.: |
EUC-026S140DS |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
26W |
Max Output Current: |
1400mA |
Output Current Factory Setting: |
1400mA |
Max Output Voltage: |
19V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
3.07" L x 3.15" W x 1.06" H |
UL Class: |
Class 2 |
Features: |
Short circuit and overload protection + Over temperature protection |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
