Description

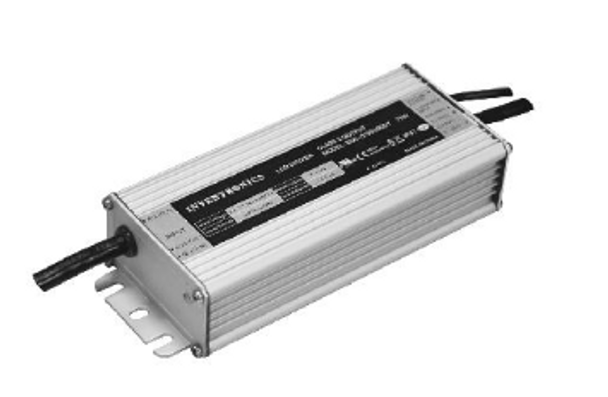

INVENTRONICS LED Driver, Constant Current, Non-Dimming, 90-305Vac Input, 75W, 1050mA, 36-72 Vdc Output, IP67
DISCONTINUED BY MANUFACTURER - Shipping Manufacturer's Replacement that is programmable current output. Please review and order here specifying custom current output of 1050mA in space provided: EUM-075S105DT
INVENTRONICS LED Drivers 75W 1050mA Non-Dimming Constant Current
Every LED array or fixture requires a driver to provide efficient power. At BallastShop we offer a wide array drivers to meet your power output and dimming requirements of virtually any LED in the marketplace.
- Total Power: 75 Watts 1050mA
- Input Voltage: 90-305 VAC
- Waterproof (IP67): Waterproof (IP67) and UL Dry / Damp / Wet Location. DT models in Wet Locations must be Built-In
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
- Efficiency up to 90%
- Operating temperature range: -40°C to 70°C
Additional Information
Our Part No.: |
BSF-EUC-075S105ST |
Manufacturer Part No.: |
EUC-075S105ST |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
75W |
Max Output Current: |
1050mA |
Output Current Factory Setting: |
1050mA |
Max Output Voltage: |
72V |
Dimming: |
Non Dimming |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
5.91" L x 2.66" W x 1.41" H |
UL Class: |
Class 1 |
Features: |
Input Surge Protection |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
