Description
Inventronics Programmable Constant Current LED Driver, 96W Max Power Output, Universal 120-277V Input, Fixed Programmable Output Current 1750-2150mA (factory default 2100mA), 24-55Vdc Output, Analog 0-10V Dimming, Auxiliary Power

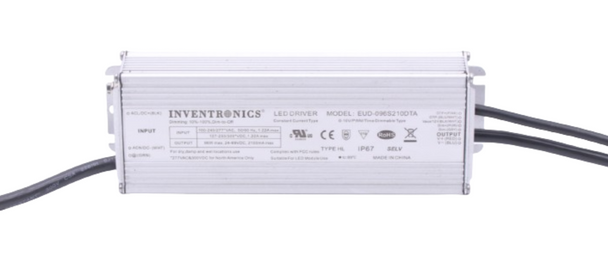

Inventronics 96W 2100mA Constant Current LED Driver
- Power Output: 96W
- Programmable Output Current: 1750-2150mA (factory default 2100mA)
- Always-On Auxiliary Power: 12V, 200mA
- Dim-to-Off with Low Standby Power
- Dimming: 0-10V, PWM, Multiple Timers
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- Output Lumen Compensation
- Thermal Sensing and Protection for LED Module
- IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
- Class 2 and SELV Output
Spec Sheets
Additional Information
Our Part No.: |
BS61-EUD-096S215DTA |
Manufacturer Part No.: |
EUD-096S215DTA |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
96W |
Max Output Current: |
2150mA |
Output Current Factory Setting: |
2100mA |
Output Current Programmable Range: |
1750-2150mA |
Max Output Voltage: |
55V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
7.09" L x 2.66" W x 1.44" H |
UL Class: |
Class 2 |
Features: |
Programmable Current Output |
Warranty: |
Manufacturer's |
Case Size: |
20 |
