Description

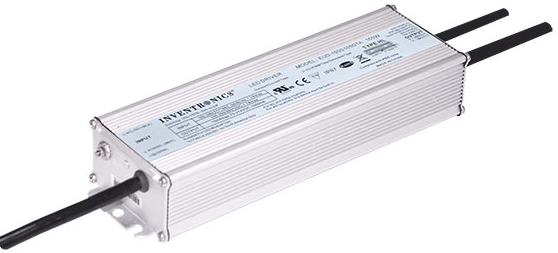

Inventronics EUD-150S105DTA Constant Current LED Driver, 150W Max Power Output, Universal 120-277 Input, Output Current 700-1050mA (factory set at 700ma), 75-214Vdc Output, Auxiliary Port, Dimmable
Inventronics 150W Constant Current LED Driver
- Programmable, Enabling Hundreds of Configurations
- Controls-Ready
- Always-On Auxiliary Power: 12V, 200mA
- Dim-to-Off with Low Standby Power
- Dimming Controls: 0-10V, PWM, Multiple Timers
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- Output Lumen Compensation
- Thermal Sensing and Protection for LED Module
- Class 2 and SELV Output
- IP67 and UL Dry/Damp/Wet Location
- Type HL, for use in a Class I, Division 2 Hazardous (Classified) Location
Spec Sheets
Additional Information
Our Part No.: |
BS61-EUD-150S105DTA |
Manufacturer Part No.: |
EUD-150S105DTA |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
150W |
Max Output Current: |
1050mA |
Output Current Factory Setting: |
700mA |
Output Current Programmable Range: |
700-1050mA |
Max Output Voltage: |
214V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
8.62" L x 2.66" W x 1.56" H |
UL Class: |
Class 1 |
Features: |
Auxiliary Port |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
