Description
Inventronics Constant Current LED Driver, 480W Max Power Output, Universal 120-277V Input, Programmable Fixed Output Current 7500-10000mA (factory default 10,000mA), 24-64V Output, Tri-mode 0-10V/PWM/Timer Dimming

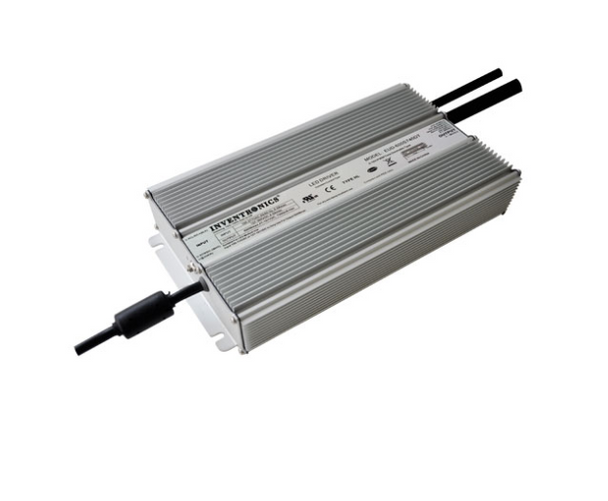

Inventronics 480W 10000mA Constant Current LED Driver
- Programmable, Enabling Hundreds of Configurations
- Controls-Ready
- Always-On Auxiliary Power: 12V, 200mA
- Dim-to-Off with Low Standby Power
- Dimming Controls:
- 0-10V, PWM, Multiple Timers
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- Output Lumen Compensation
- Thermal Sensing and Protection for LED Module
- Class 2 and SELV Output
- IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
Spec Sheets
Additional Information
Our Part No.: |
BS61-EUD-480S10ADT |
Manufacturer Part No.: |
EUD-480S10ADT |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
480W |
Max Output Current: |
10000mA |
Output Current Factory Setting: |
10000mA |
Output Current Programmable Range: |
7000-10000mA |
Max Output Voltage: |
64V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
9.26" L x 4.93" W x 1.72" H |
UL Class: |
Class 1 |
Features: |
Programmable |
Warranty: |
Manufacturer's |
Case Size: |
10 |
