Description
Inventronics Constant Current LED Driver, 75W Max Power Output, Universal 120-277V Input, Programmable Output Current 1400-2100mA (factory default 2100mA), Output Voltage 18-54V, Dimming 0-10V/PWM/Timer with Dim-to-Off, IP66/IP67

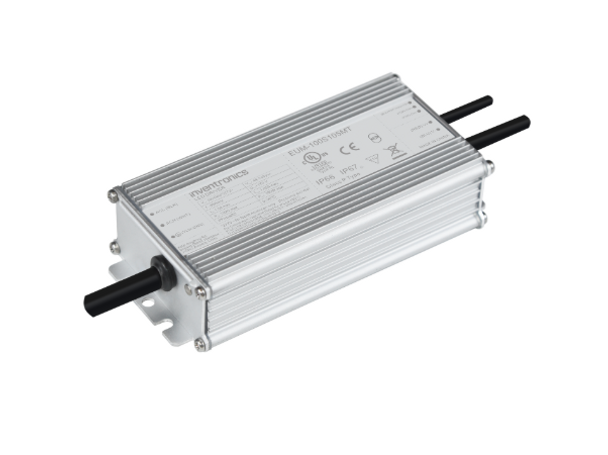

Inventronics 75W 2100mA Constant Current Programmable LED Driver
- Programmable Output Current 1400-2100mA (factory default 2100mA)
- Isolated 0-10V/PWM/3-Timer-Modes Dimmable
- Input Surge Protection: DM 6kV, CM 10kV
- Output Lumen Compensation
- IP66/IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
- UL Class P
Spec Sheets
Additional Information
Our Part No.: |
BS61-EUM-075S210MT |
Manufacturer Part No.: |
EUM-075S210MT |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
75W |
Max Output Current: |
2100mA |
Output Current Factory Setting: |
2100mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
4.92" L × 2.66" W × 1.43" H |
UL Class: |
Class 2 |
Features: |
Tri Mode Dimming |
Warranty: |
Manufacturer's |
Case Size: |
10 |
