Description

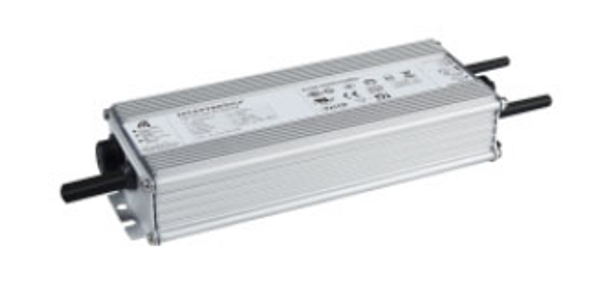

Inventronics EUM-200S560DT Programmable Constant Current LED Driver, 200W Max Power Output, Universal 120-277V Input, Programmable Output Current 3500-5600mA (factory default 4200mA), Output Voltage 18-57V, Analog and PWM Dimming, IP66/IP67
Inventronics 200W 700mA Constant Current Programmable LED Driver
- Programmable, Enabling Hundreds of Configurations 3500-5600mA (factory default 4200mA)
- Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Input Surge Protection: DM 6kV, CM 10kV
- Output Lumen Compensation
- IP66/IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
- UL Class P
Spec Sheets
Additional Information
Our Part No.: |
BS61-EUM-200S560DT |
Manufacturer Part No.: |
EUM-200S560DT |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
200W |
Max Output Current: |
5600mA |
Output Current Factory Setting: |
4200mA |
Max Output Voltage: |
57V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
6.73" L × 2.36" W × 1.43" H |
UL Class: |
Class 2 |
Features: |
TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location |
Warranty: |
Manufacturer's |
Case Size: |
10 |
