Description
Inventronics EUM-320S500DG Constant Current LED Driver, 320W Max Power Output, Universal 120-277V Input, Programmable 2850-5000mA (factory default 4900mA), Output Voltage 32-112V, Output, Analog/PWM/Timer Dimming

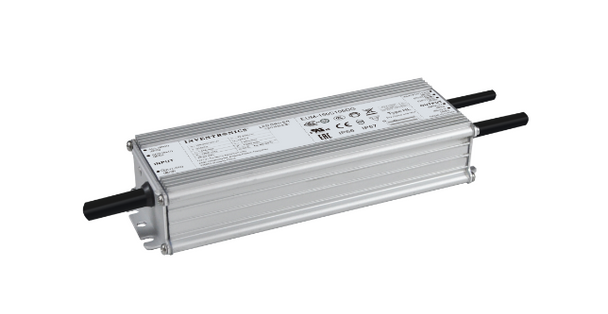

Inventronics 320W Constant Current LED Driver
- Programmable, Enabling Hundreds of Configurations 2850-5000mA (factory default 4900mA)
- Compact Metal Case with Excellent Thermal Performance
- Dimming Controls: Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Input Surge Protection: DM 6kV, CM 10kV
- Output Lumen Compensation
- Class 2 and SELV Output
- IP66 / IP67 and UL Dry / Damp / Wet Location
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
Spec Sheets
Additional Information
Our Part No.: |
BS61-EUM-320S500DG |
Manufacturer Part No.: |
EUM-320S500DG |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
320W |
Max Output Current: |
5000mA |
Output Current Factory Setting: |
4900mA |
Max Output Voltage: |
112V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
7.0" L × 2.36" W × 1.34" H |
UL Class: |
Class 2 |
Features: |
Programmable |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
