Description

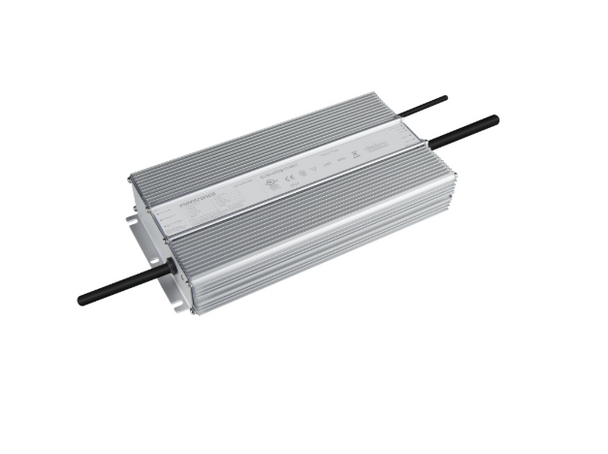

Inventronics Constant Current LED Driver, 680W Max Power Output, Universal 120-277V Input, Programmable Output Current 4200-5600mA (factory default 5600mA), Output Voltage 60.7-163V, Dimming 0-10V/PWM/Timer with Dim-to-Off, IP66/IP67
Inventronics 680W 5600mA Constant Current Programmable LED Driver
- Programmable Output Current 4200-5600mA (factory default 5600mA)
- Isolated 0-10V/PWM/3-Timer-Modes Dimmable
- Input Surge Protection: DM 6kV, CM 10kV
- Output Lumen Compensation
- IP66/IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
- UL Class P
Spec Sheets
Additional Information
Our Part No.: |
BS61-EUM-680S560MT |
Manufacturer Part No.: |
EUM-680S560MT |
Brand: |
Inventronics |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
680W |
Max Output Current: |
5600mA |
Output Current Factory Setting: |
5600mA |
Max Output Voltage: |
163V |
Dimming: |
Analog (0-10V), PWM, Timer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp/Wet |
Dimensions: |
9.84" L × 5.31" W × 1.81" H |
UL Class: |
Class 2 |
Features: |
Tri Mode Dimming |
Warranty: |
Manufacturer's |
Case Size: |
10 |
