Description

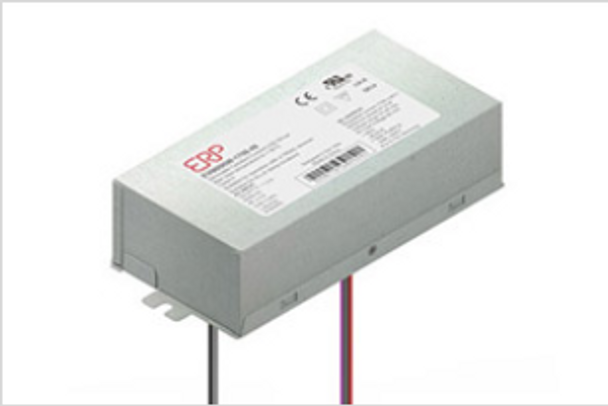

ERP Power EVM090W-1050-84 Constant Current LED Driver, 88W power out, universal input voltage 120-277V, output voltage 70-84V, constant current of 1050mA, tri-mode dimming 0-10V/TRIAC/ELV
ERP 88W 1050mA Constant Current LED Power Supply
- Power 88W AC DC Converter
- Input Voltage: 120-277 VAC, Output Voltage: 70 ~ 84 V
- Current Output: 1050mA
- Drives high current COB LEDs: Cree CXA3050/3070/3590, Bridgelux Vero series. LED modules like Cree LMH020 series 6000/8000 lumen
- IP20, NEMA 410
- Dimming: TRIAC (forward-‐phase or leading-‐edge)/ELV (reverse-‐phase or trailing-‐edge) and 0-10 V
- Analog 0-10V dimming function: 10V=100%, 1V=10%, 0.1V=1%
- Not Class 2
Spec Sheets
Additional Information
Our Part No.: |
BS56-ERP-EVM090W-1050-84 |
Manufacturer Part No.: |
EVM090W-1050-84 |
Brand: |
ERP Power |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
88W |
Max Output Current: |
1050mA |
Output Current Factory Setting: |
1050mA |
Max Output Voltage: |
84V |
Dimming: |
Analog (0-10V), TRIAC, ELV |
Product Data Sheet: |
|
Location Rating: |
Dry/Damp |
Dimensions: |
5.66" L x 2.76" W x 1.57" H |
Features: |
Tri-mode Dimming |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
10 |
