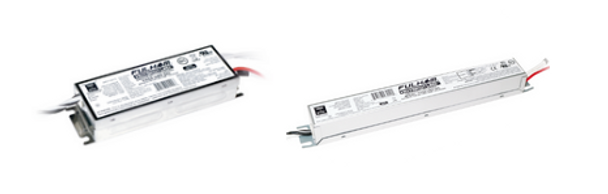

FHS2-UNV-36L / FHS2-UNV-56S Fulham HotSpot2 Emergency Lighting LED Driver - 20W 100-700mA

FULHAM HotSpot2 LED Emergency Lighting LED Driver, 20W Max Power Output, Universal 120-277V Input, Programmable Output Current 100-700mA (factory default 700mA) or use Output Current Wiring Harness, Output Voltage 15-55V, CA Title 20 Compliant, Self Diagnostic, Dry/Damp

Fulham HotSpot2 FHS2 Emergency LED Driver

This will operate any LED module designed to accept an input voltage range of 12-55VDC and can operate up to a current of 700mA

Features

• Max Power Output 20W
• LED Emergency Output Current Options: 100mA – 700mA
• Only 24 or 32 hour recharge time
• Self-diagnostic capability reduces liability and maintenance costs
• CA Title 20 Compliant
• Output Classification: UL1310/Class 2
• Compatible Batteries: LiFePo4, NiCd, 9.6 VDC
• FHS2-UNV-36L: Output Voltage 12-55Vdc, Dimensions 5.34″ x 1.69″ x .93″
• FHS2-UNV-56S: Output Voltage 12-56Vdc, Dimensions 9.5″ x 1.19″ x 1″

How to Select and Order a Complete HotSpot2 Emergency System:

Step 1: Select a HotSpot2 LED DRIVER (FHS2-UNV-36L or FHS2-UNV-56S) based on dimensions and output voltage

Step 2: Select a HotSpot2 BATTERY based on dimensions, total capacity, and max load

Step 3: Select a HotSpot2 WIRING HARNESS based on required current and run time
